Ampd bros ACE-X Mini
Ampd bros ACE-X Mini

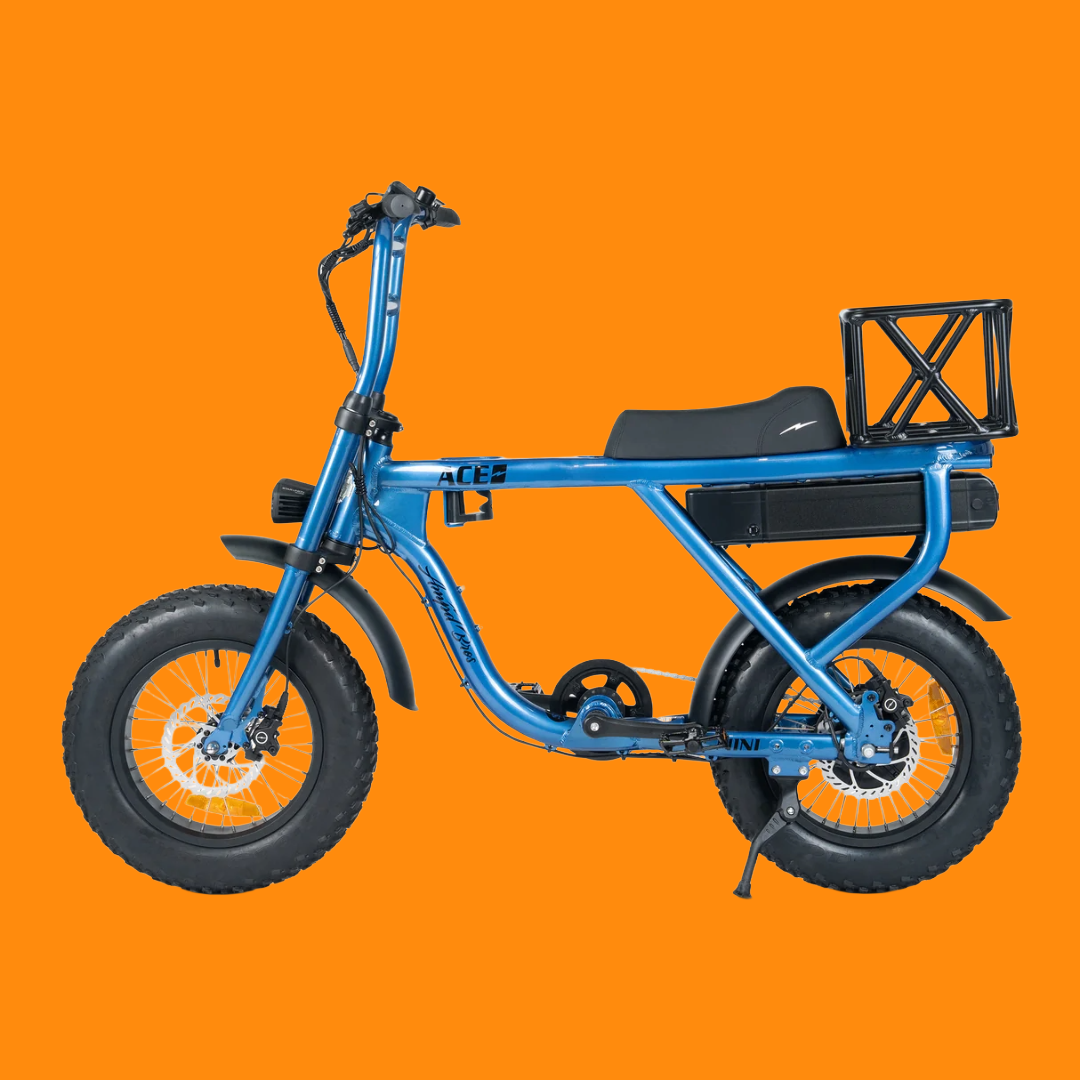

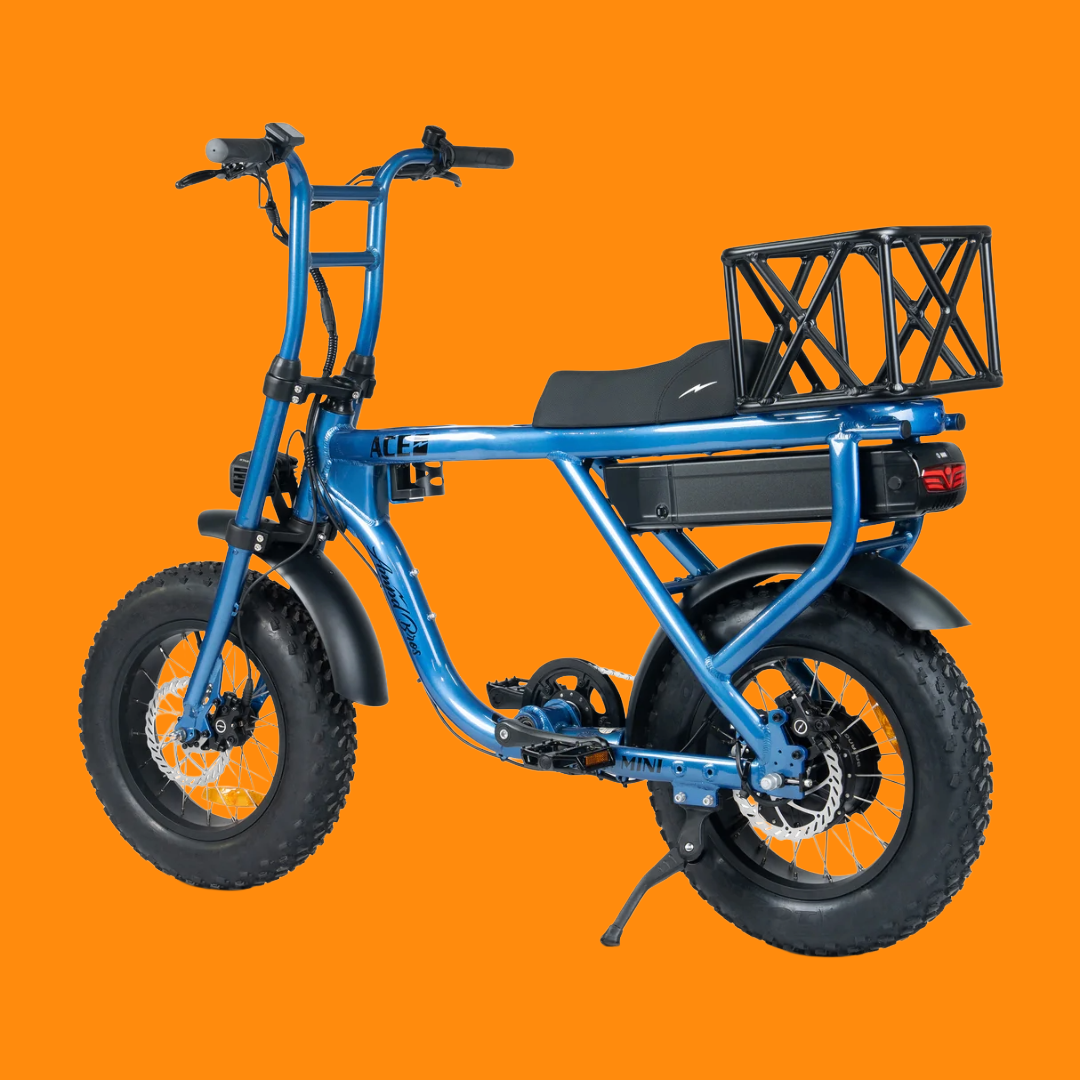

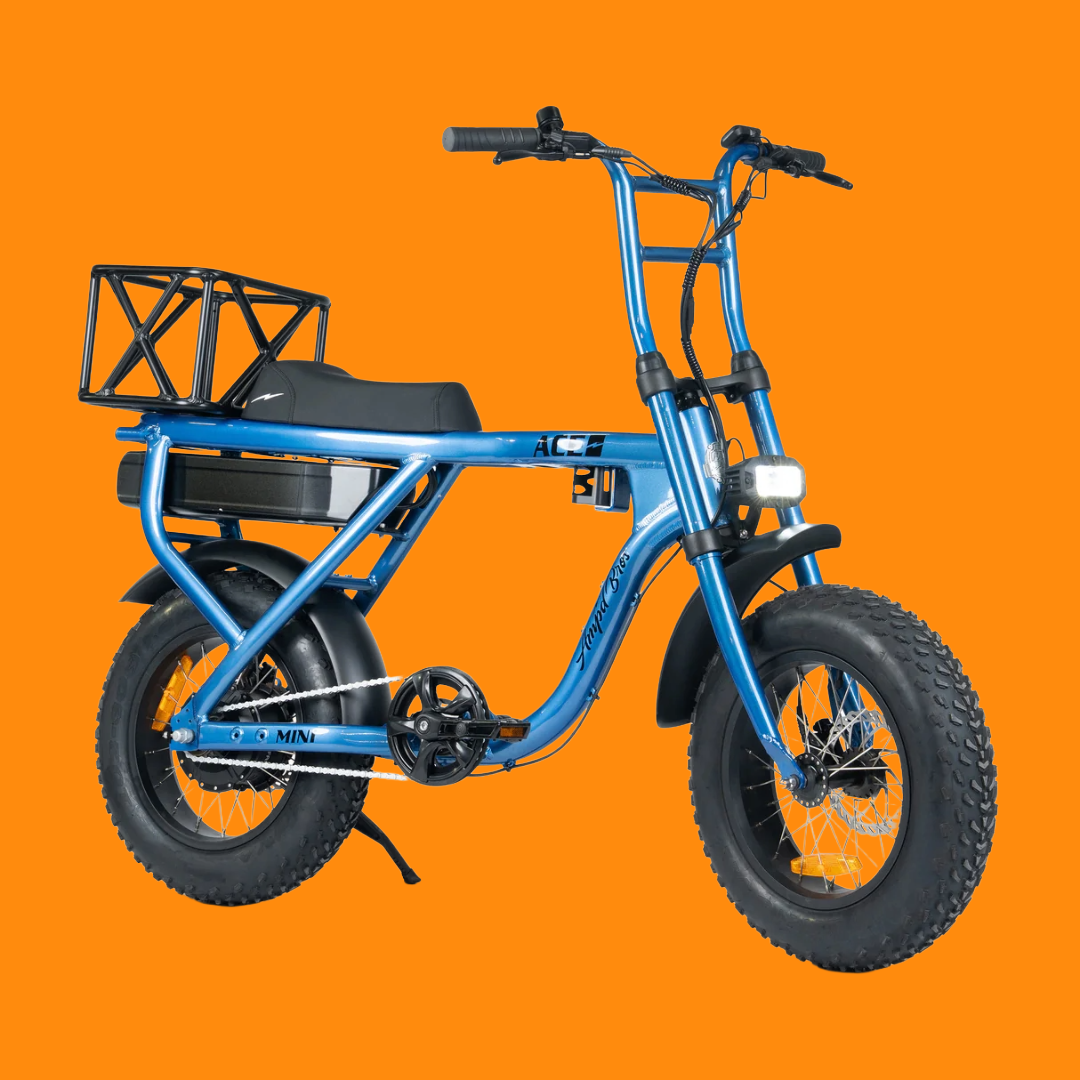

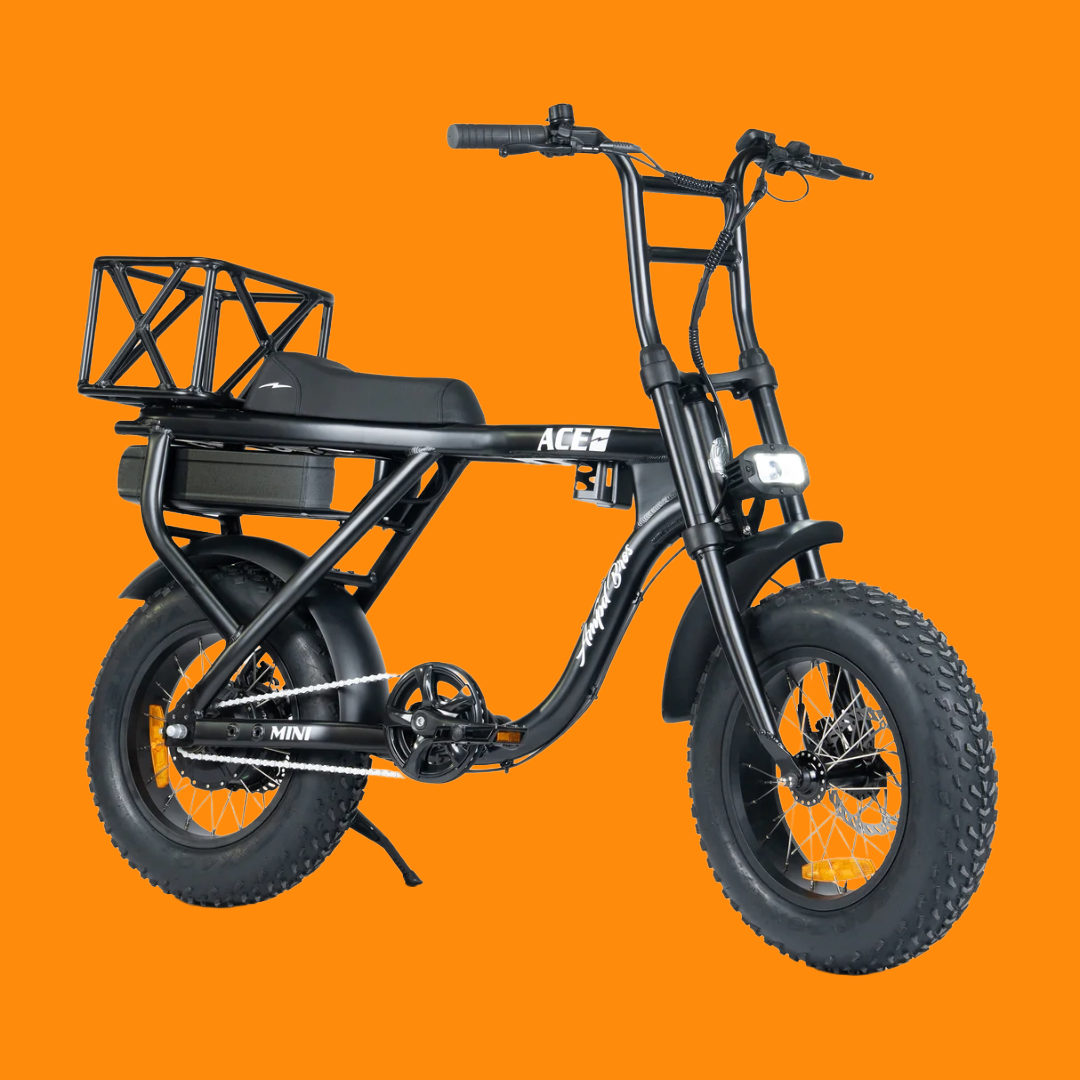

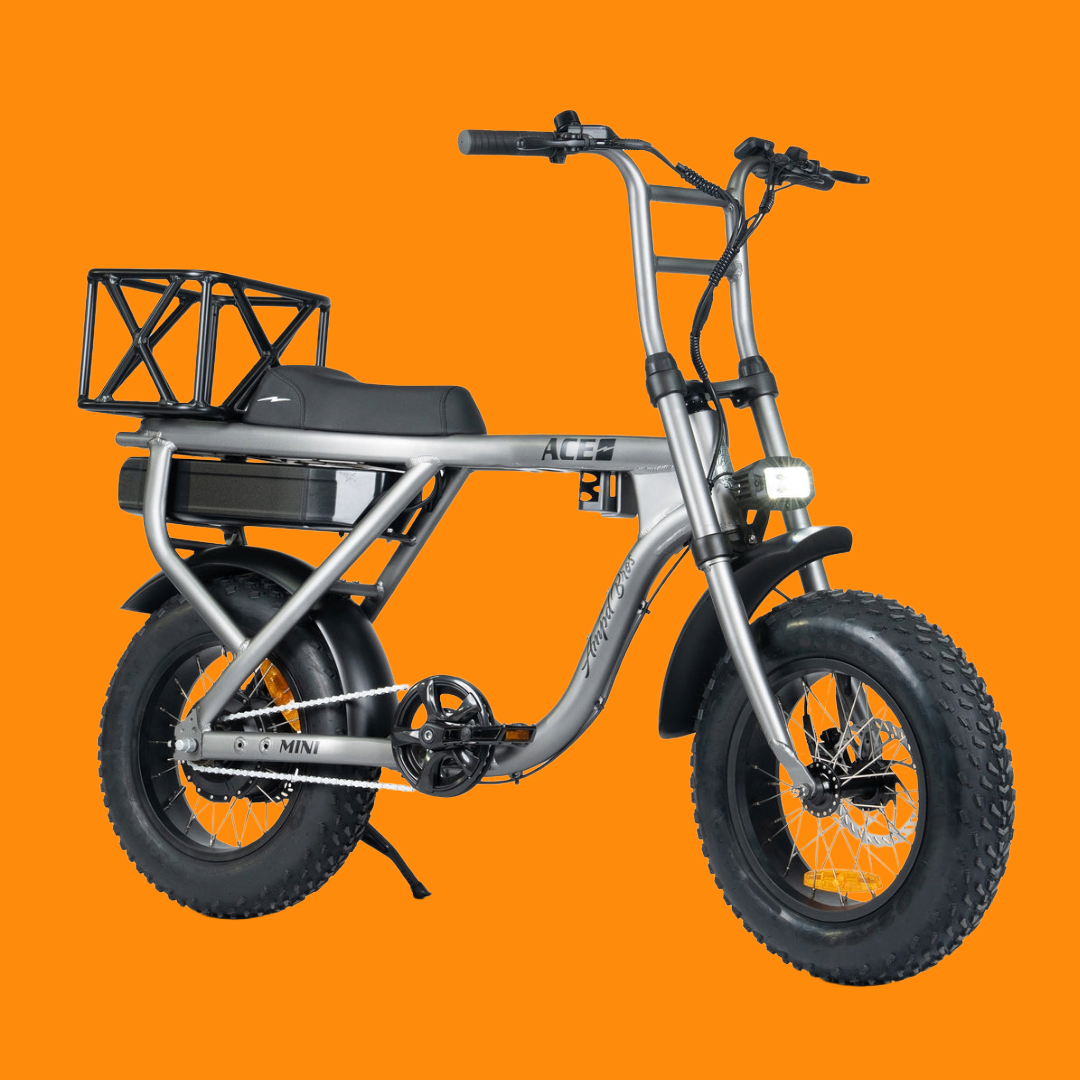

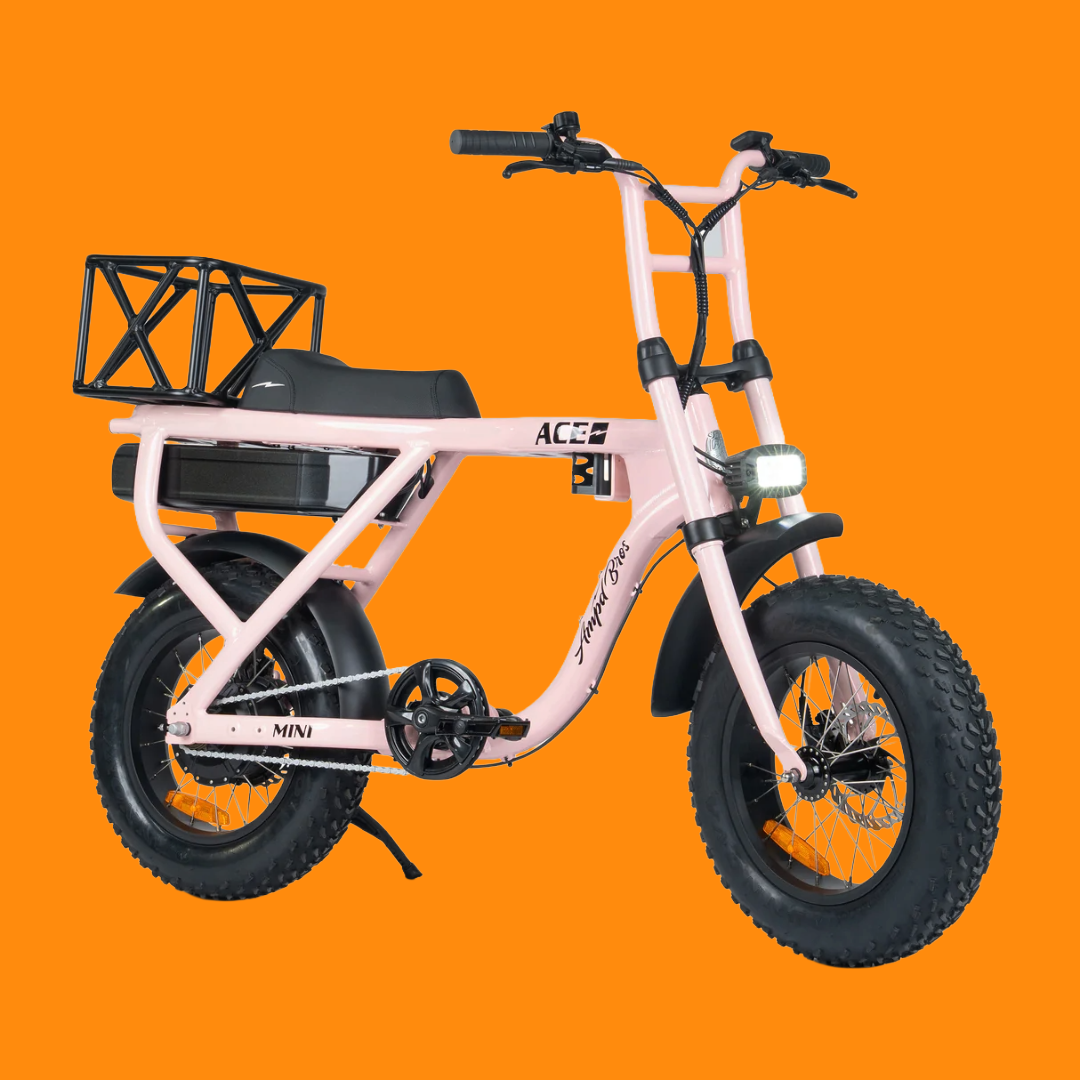

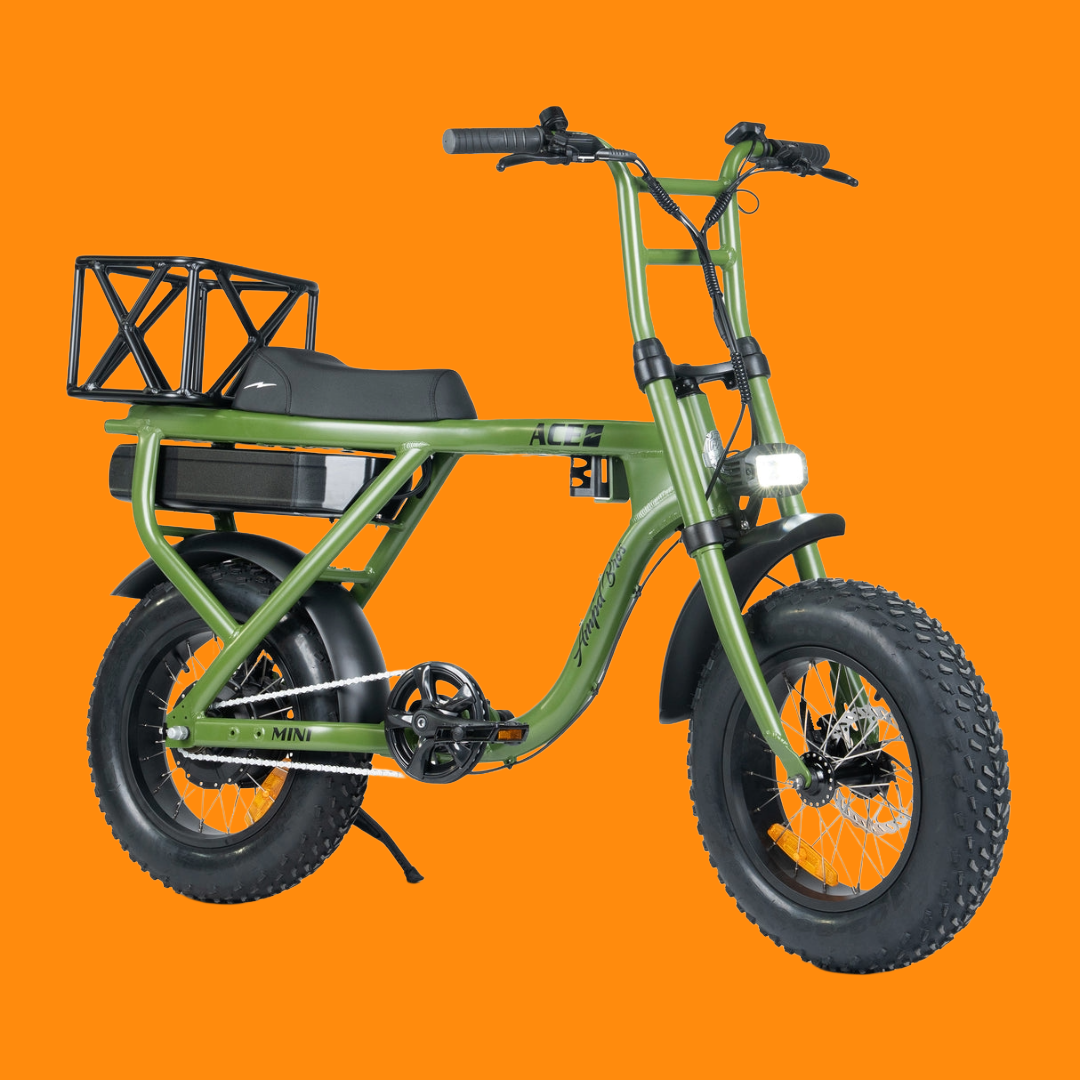

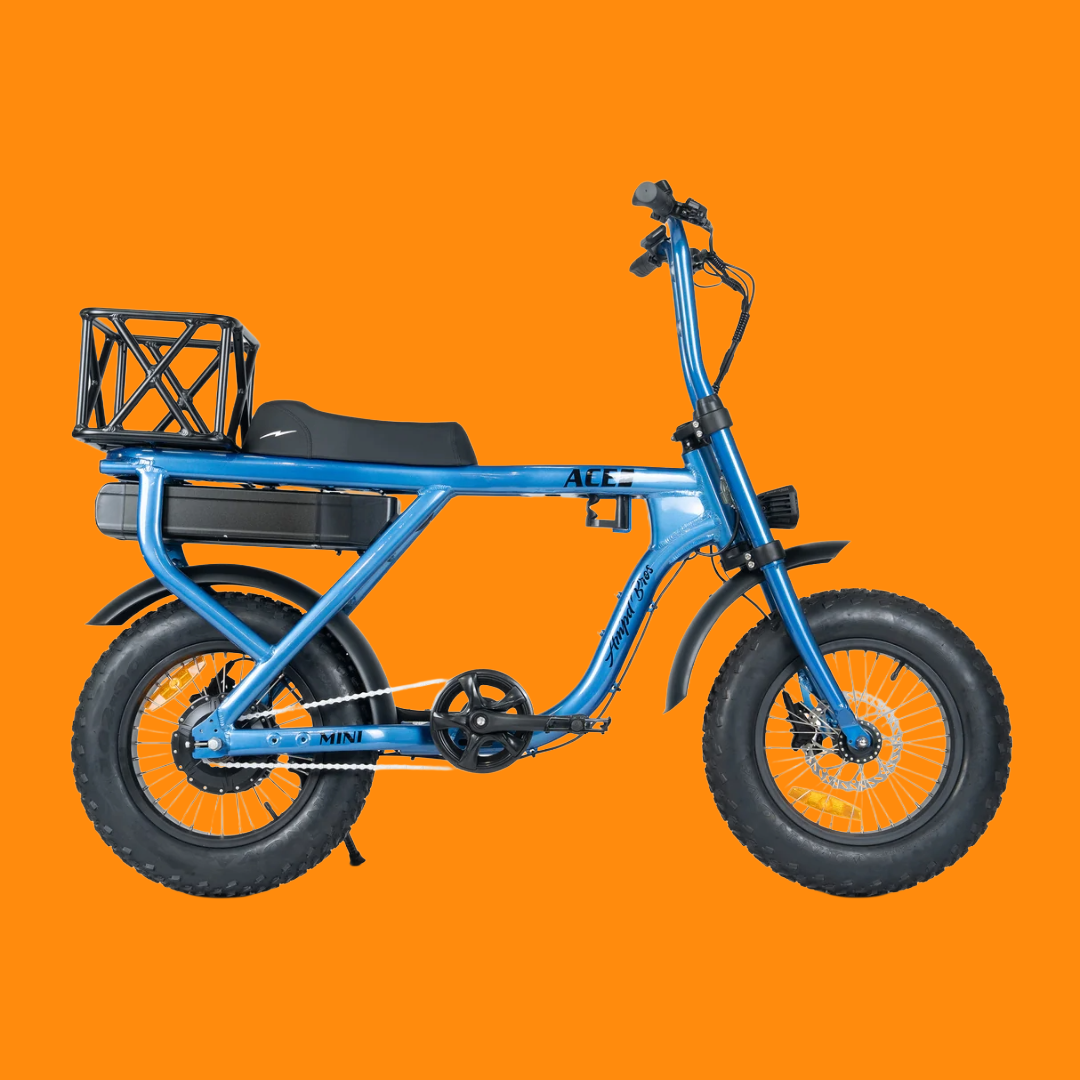

Big Power, Small Frame – Meet the ACE Mini
Introducing the ACE Mini – the compact electric cruiser that proves size isn’t everything. Whether you’re commuting, cruising, or just out for fun, this small-framed powerhouse packs serious performance, personality, and punch into every ride.
A Compact Bike for Riders Who Want More
Don’t let the name fool you. The ACE Mini might be smaller in size, but it’s big on attitude. Designed for teens and adults alike, this lightweight cruiser is built for beach runs, urban adventures, and weekend rides. Its low frame and agile build make it easy to store, transport, and manoeuvre—perfect for caravans, apartments, or life on the go.
Powerful Performance in Every Pedal

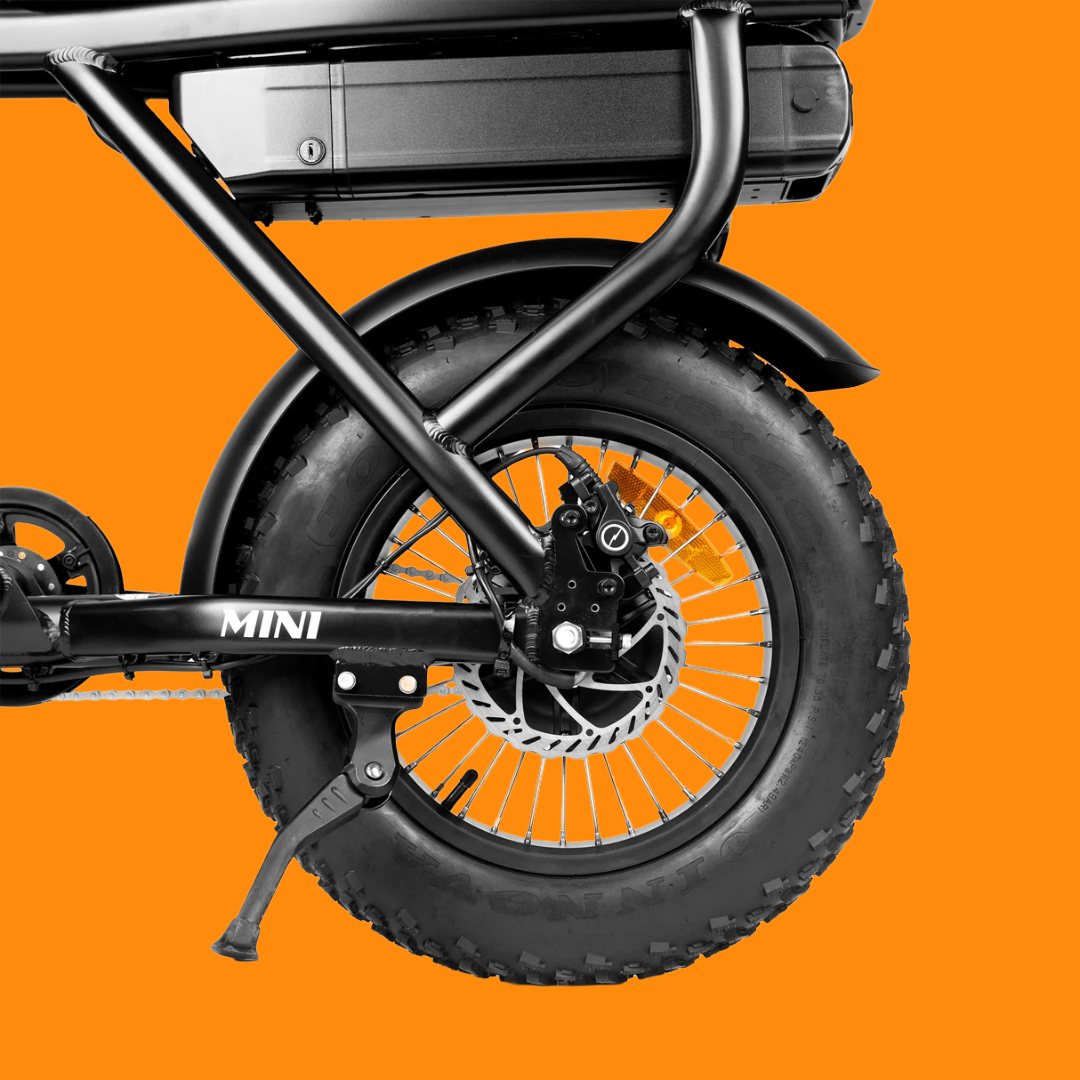

The ACE Mini is equipped with a High Torque Bafang Rear Hub Motor, capable of 25km/h delivering effortless acceleration and responsive handling. Powered by a removable 48V 10AH Samsung Lithium Battery, you’ll enjoy up to 40km of range on a single charge so you can keep moving without the constant need to recharge.
Confident Control Across All Terrain

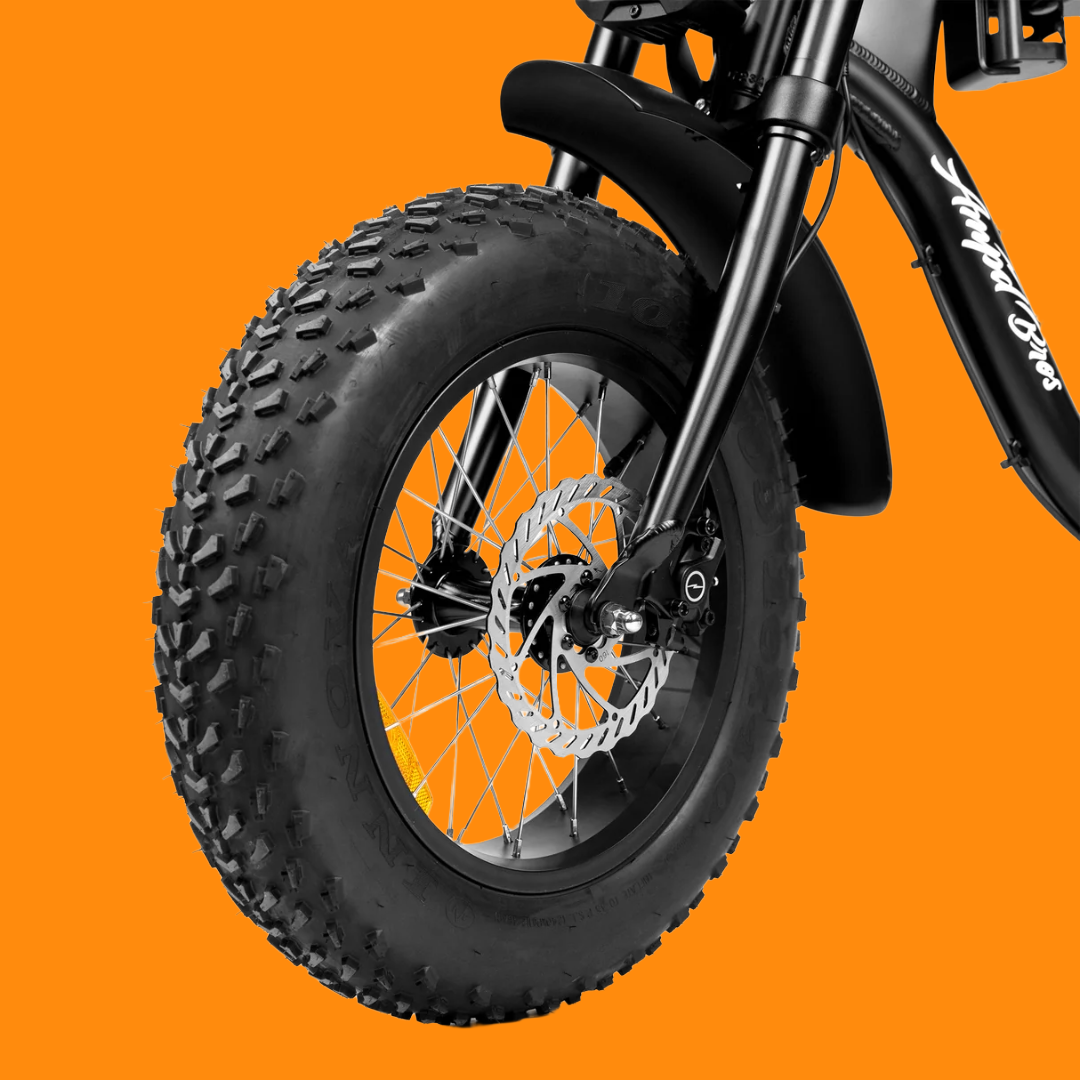

From bike paths to beach tracks, the ACE Mini keeps you in control with its chunky 16x4” Fat Tyres, giving you extra grip and stability no matter the surface. Hydraulic Disc Brakes provide premium stopping power, while the high-power LED headlight and colour Micro LCD Display ensure you’re seen and always in the know, even in low-light conditions.
Everyday Practicality Meets Customisable Style

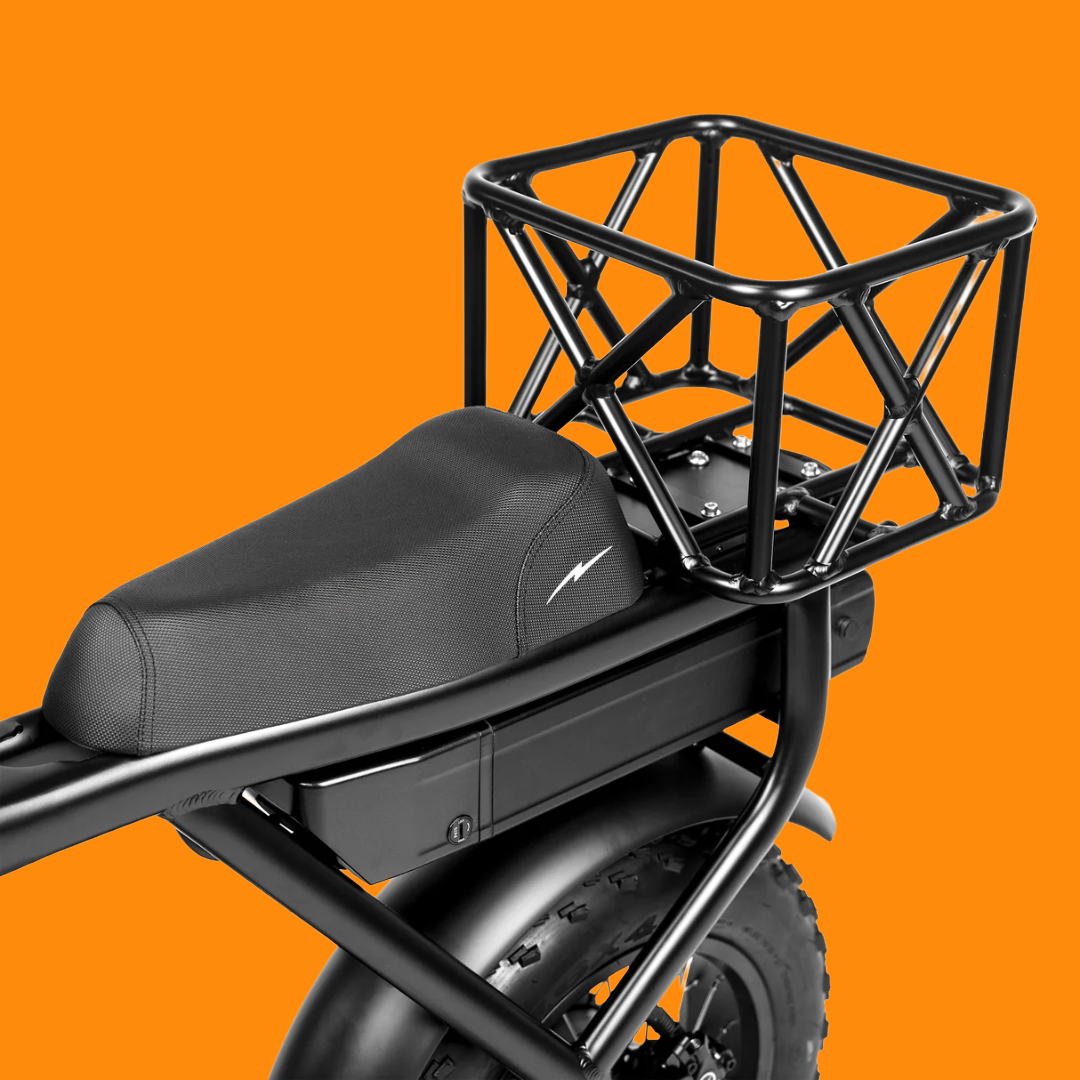

Every ACE Mini comes with a tough, lightweight rear aluminium basket included for free—perfect for daily essentials or weekend hauls. Want to ride two-up? Simply remove the basket and upgrade to an optional extended dual seat for added versatility.
Built for Everyday Riders and Weekend Warriors
With a durable, thoughtfully engineered frame and a clean, stylish design, the ACE Mini isn’t just functional—it’s fun. Whether you’re heading to the local café, exploring the coast, or simply enjoying the ride, this bike is your go-to companion for lightweight, no-fuss freedom on two wheels.
Reminder: Always check with your local authority regarding where and how electric bikes like the ACE Mini can be ridden safely and legally in your area.
Specs:
Range
- Ace Mini Models 40km+
Battery
- Ace Mini 48V / 480Wh, 10AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor Drive
- All Models Bafang Rear Hub 250W High Torque Motor
- Ace Mini 65N.m
- All Models Restricted to 25km/h
Controller
- Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
- Ace Mini Rated to 500W / Peak 750W+
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs

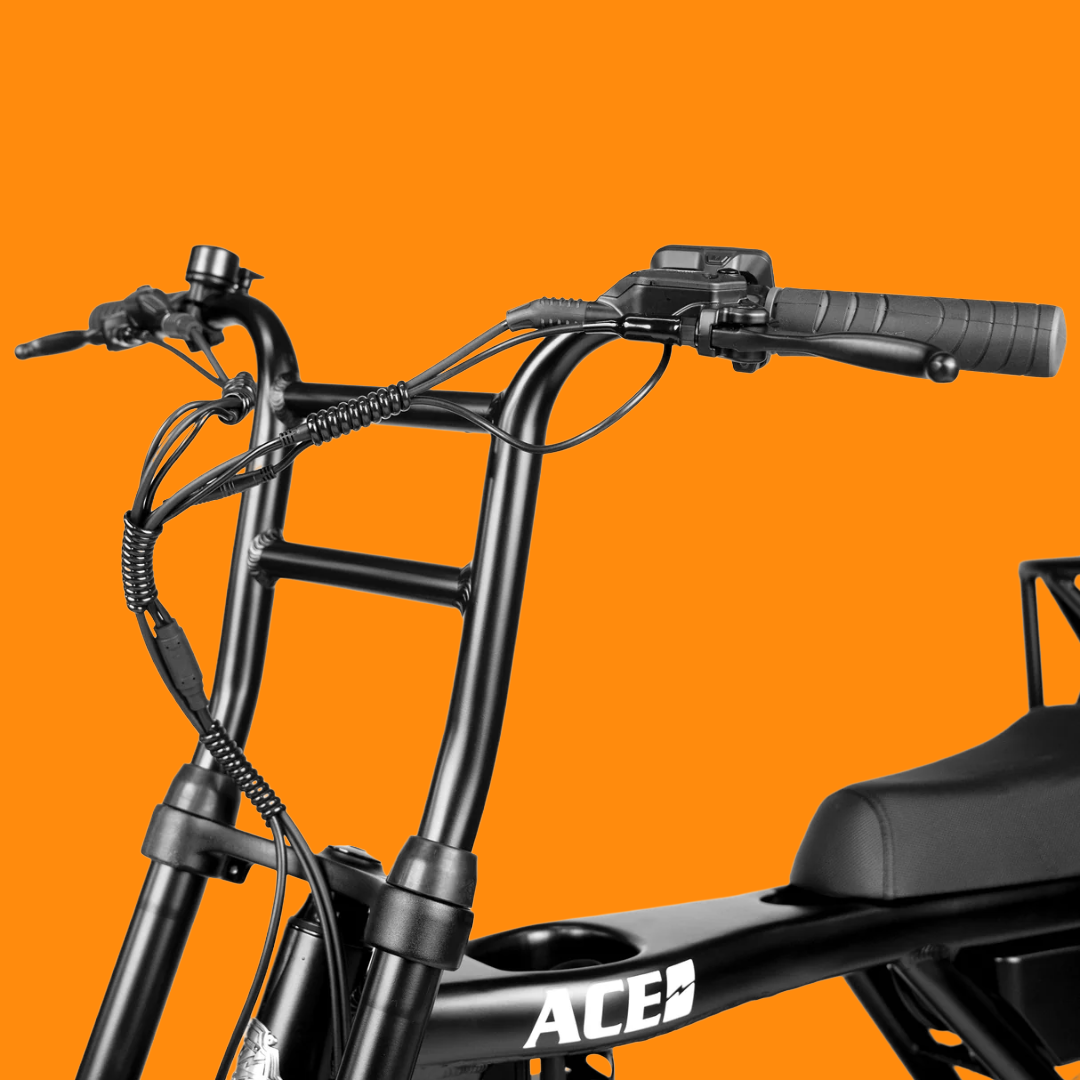

- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
- ACE Mini Max Loading 100 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
