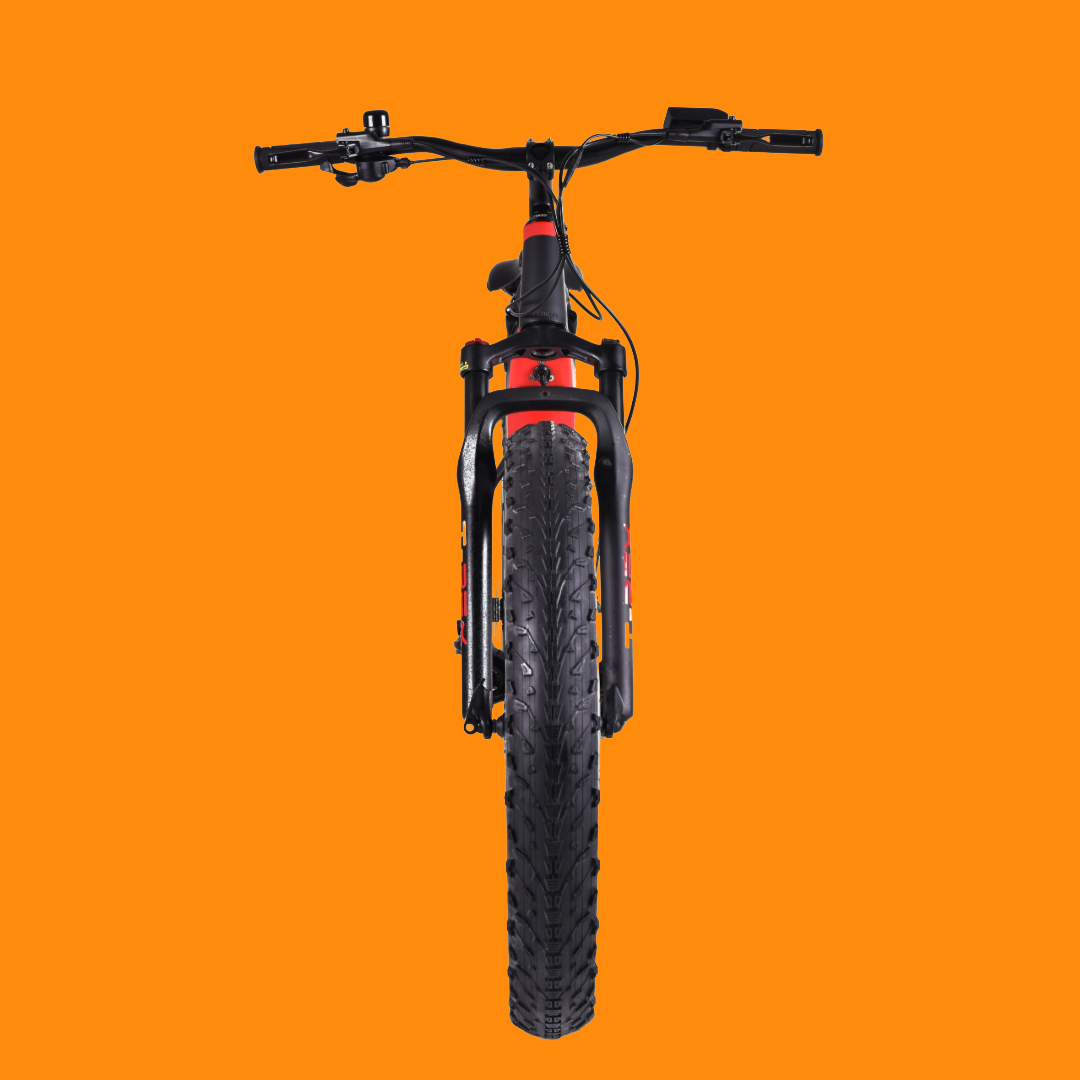

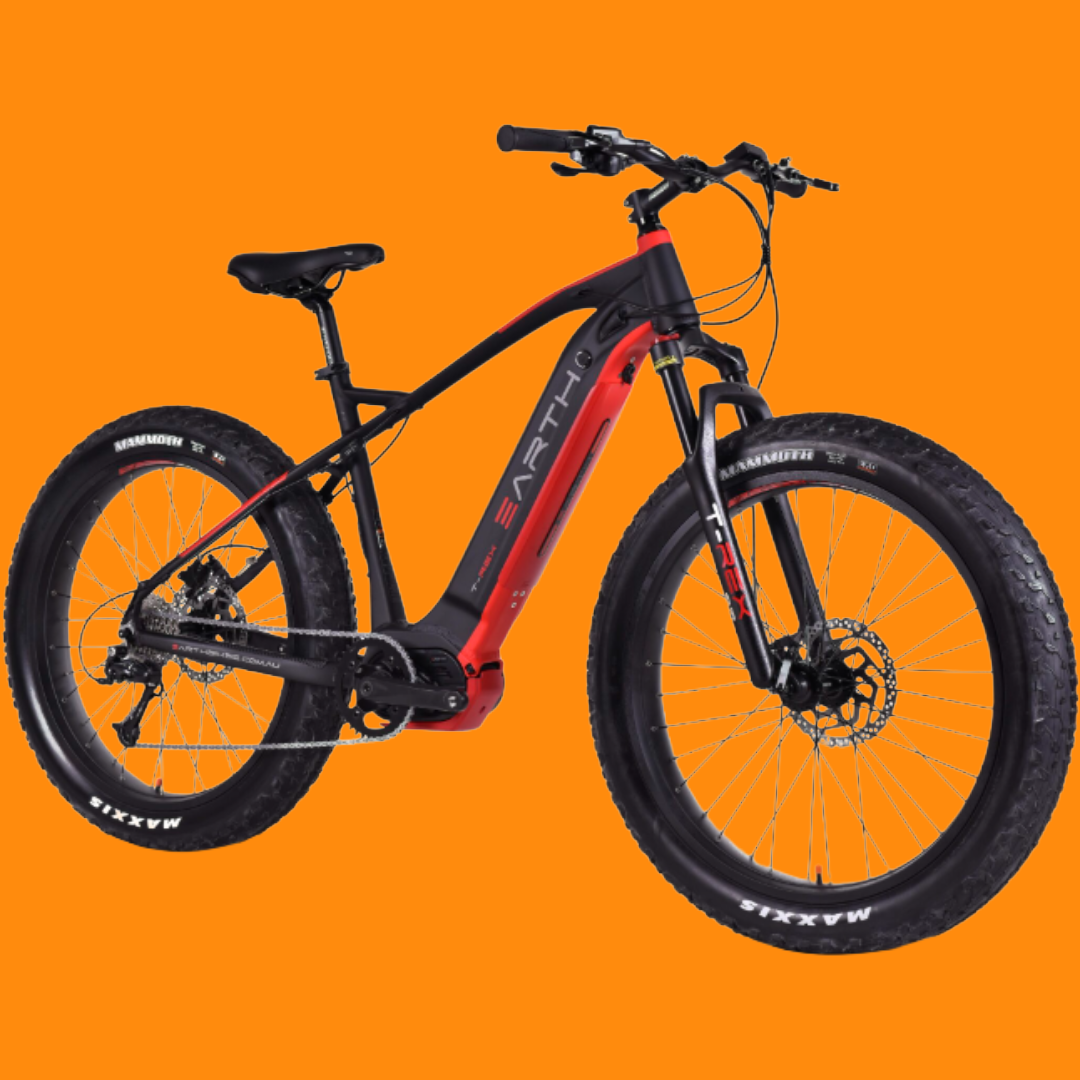

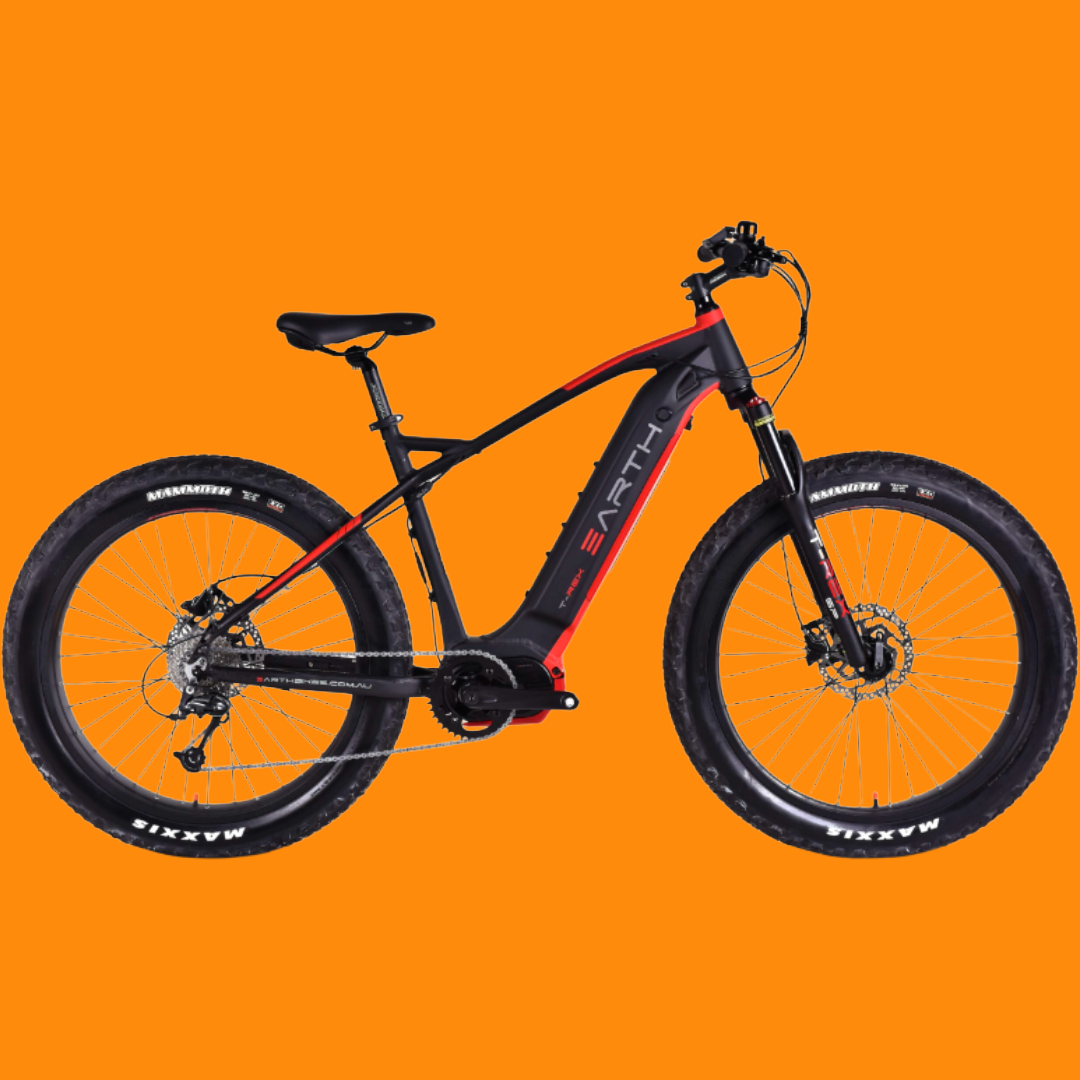

Earth T-Rex Rino SP Fat Bike
Earth T-Rex Rino SP Fat Bike
NEW EARTH T-REX RINO Fat Tire ebike.
German design with advanced and latest EARTH ATM 100 N.m mid-drive e-bike technology, the new TREX RINO SP 48V Crank Drive Fatbike is an ‘ all terrain go anywhere “ electric ebike.
EARTH TREX RINO features include quality brand bike components and powered by NEW EARTH's own ATM Crank Drive 48V mid-mount 90.n.m motor and massive 48V 600WH Samsung lithium-ion battery power pack, one of the largest battery capacities of any branded e-bikes in Australia.
(Optional Dual Battery Mount System Available to purchase )
Our EARTH T-Rex RINO electric bikes come with a fully integrated down tube battery to protect the battery and wires from damage and theft. Quality bicycle components like Selle royal saddle, Lockout suspension fork, Shimano/Tektro Hydraulic Disc Brakes, Shimano Deore 9 speed gears make it one of the best value on-road and off-road electric FAT ebike in Australia.
Equipped with the Maxxis Mammoth 26x4.0* EXO protection tires on your bike, you can forget about the weather and hit the trails or sand.
The modern striking off-road profile stands out due to the compact center ramp. It rolls quietly and with little vibration. Edged outer lugs give it an optimum off-road grip. Whether off-road or on-road, the MAMMOTH rolls over everything.
BIKE COMPONENTS | |
Frame Material | 6061 Alloy 26"x47MM |
Fork | 100cm Travel Hydraulic Suspension with Lockout |
Gearing | Shimano 9 Speed HG |
Crankset | 44T |
Shifters | Shimano Rapid Shift |
Rear Derailleur | Shimano Deore |
Brakes | Shimano Hydraulic Brakes, Tektro Hydraulic Brakes |
Rim | 26 Inch x 4 "Wide Rim |
Tyres | Maxxis Mammoth 26×4 |
Freewheel/Cassette | Shimano HG 11-32T |
Stem | Alloy Fixed 80mm Stem |
Grips | Velo Grips |
Saddle | Selle Royal RIO plush Saddle |
Seatpost | Promax 350mm |
Spokes | Strong Stainless Steel |
Pedals | MTB Pedals |
Weight | Approx 26kg Including Battery |
ELECTRICAL COMPONENTS | |
Chain | KMC e9 EPT Rust Resistance |
Motor | EARTH ATM SP ( All Terrain Motor ) 100N.m Torque Mid Drive |
Display Unit | TFT Colour Multi-Function Display |
Drive/Sensor | Torque / Cadence Sensor |
Battery | LI 48V 13Ah Li-Ion Battery (600Wh) ( Upgrade to 700Wh battery for Extra $150) |
Range Performance | Depend on Level of Motor Assist. Range 70~100km Plus++ |
Maximum Speed | 25kph with Power Assist ( EN15194) |
Charging Time | 1-8 Hours Depending on Battery Level Indicator |
WARRANTY | |
Frame | 3 Years |
Battery & Motor | 1Year ( Register your ebike to increase to 2Years) |
Bike Parts & Components | 1 Year |
