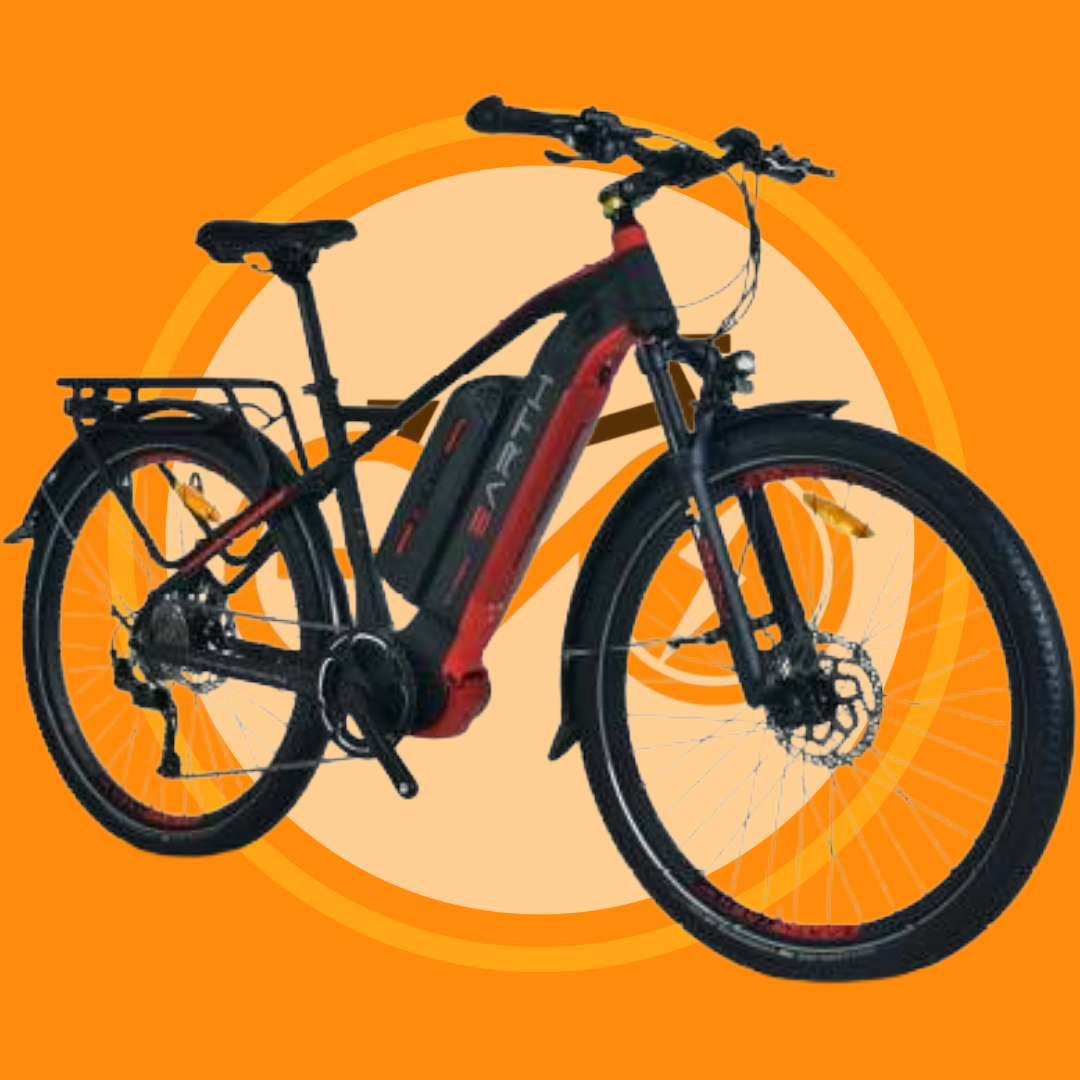

EARTH T-Rex SP Trekking

The new EARTH T-Rex SP trtekking edition is more than just a good-looking pedelec electric bicycle.  Well appointed and loaded with all the luxury practical and premium upgrades you could ever wish for electric trekking, commuter city e-bike.

German design with advanced and latest EARTH ATM crank mid-drive e-bike technology, the new T-Rex 650BSP Trekking is equipped with 100 Nm high torque EARTH 48V 100 Nm mid-mount drive motor for all your hill-busting adventures.

EARTH T-Rex 650B SP Trekking includes quality brand bike components, Shimano Alive 9 speed gears, Shimano Hydraulic brakes, Schwalbe Moto X puncture-proof tires, and tubes, heavy-duty rear rack, front & rear mudguards, front led lights and rear light, Promax adjustable stem and massive 48V 600Wh Samsung lithium-ion battery power pack, and with an OPTIONAL SECOND MOUNT BATTERY PACK, is one of the largest battery capacity of any branded e-bikes in Australia.

EARTH TRex electric bike comes with a fully integrated down tube battery to protect both battery and wires from damage and theft.

SPECIFICATIONS

FRAME MATERIAL:  6061 Alloy 27.5" x 47mm

FORK:  100cm Travel Hydraulic Suspension with Lockout

GEARING:  9 speed ACERA Shimano

CRANKSET:  46T

SHIFTERS:  Shimano Rapid Shift

REAR DERAILLEUR:  Shimano ACERA 9 speed

BRAKES:  Tektro Hydraulic Brakes 180mm

RIM:  27.5 "

TIRES:  Schwalbe Moto X 2.4/Schwalbe Tube

FREEWHEEL/CASSETTE:  Shimano Altus 9 Speed 11-32T

HANDLEBARS:  720mm

STEM:  Alloy Adjustable Stem

GRIPS:  Belo Grips

SADDLE:  Selle Royal Saddle

SEATPOST:  Suspension Seat Post

SPOKES:  Strong Stainless Steel

PEDALS:  Trekking Pedals

WEIGHT:  Approx 26kg including battery

LIGHTS:  F/R Mudguard - Rear LED Light

ELECTRICAL COMPONENTS

CHAIN:  KMCe9 EPT Rust Resistance

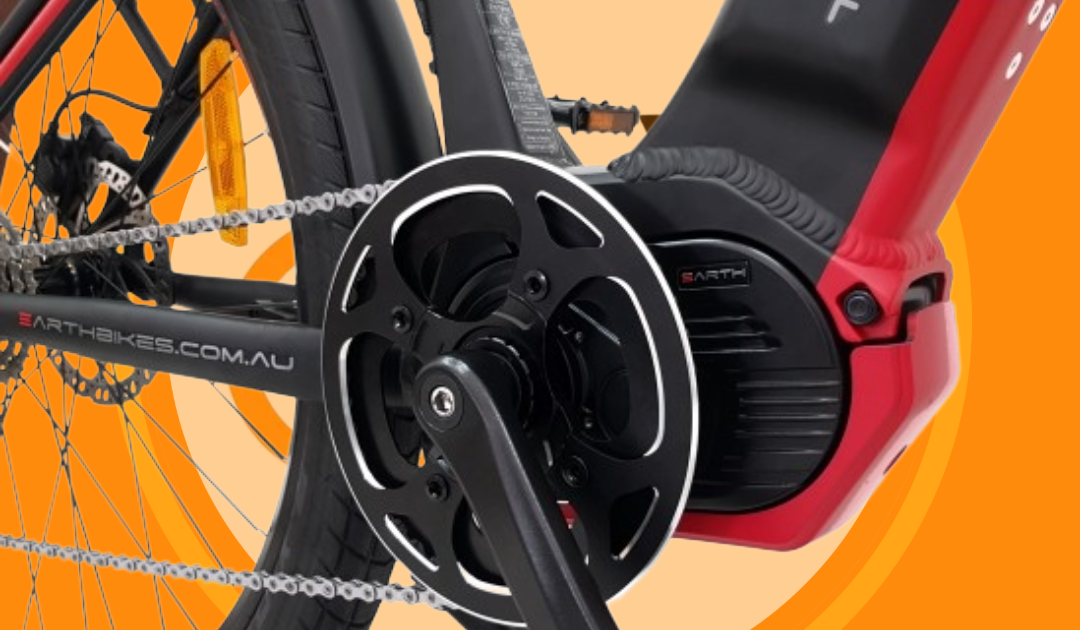

MOTOR:  EARTH ATM SP (All Terrain Motor) 100N.m Torque Mid Drive

DISPLAY UNIT:  TFT Colour Multi-Function Display

DRIVE/SENSOR:  Torque/Cadence Sensor

BATTERY:  Samsung 48V 600Wh Li-ion Battery Pack

RANGE PERFORMANCE:  Depending on level of assist 70-100km

MAX SPEED:  25kph with Power Assist per Australian Legal Standards

CHARGING TIME:  1-8 hours depending on battery level indicator

BEFORE USING THIS VEHICLE, CHECK THE APPLICABLE LOCAL LAWS RELATING TO YOUR INTENDED USE OF THE VEHICLE ON ROADS AND ROAD RELATED AREAS.
