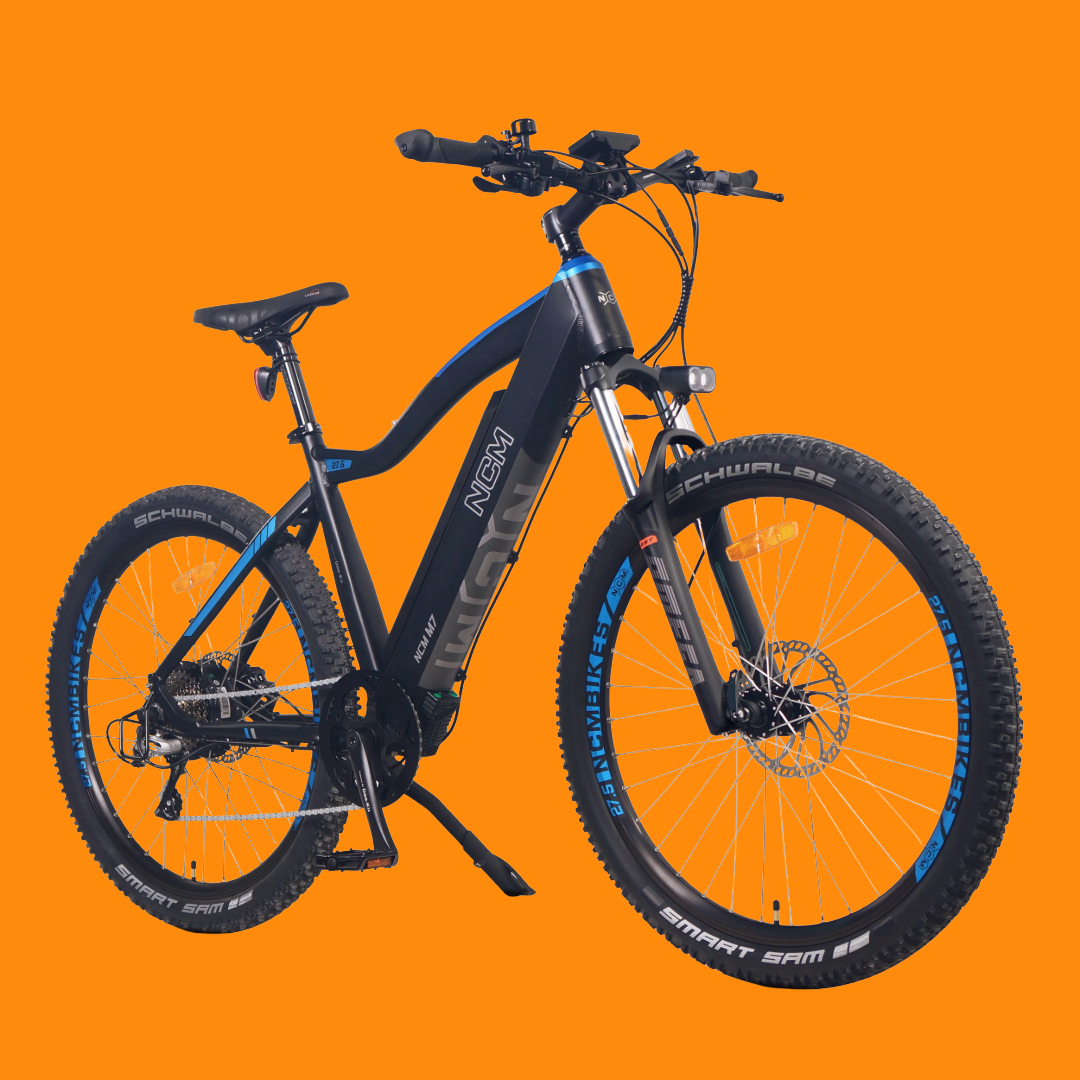

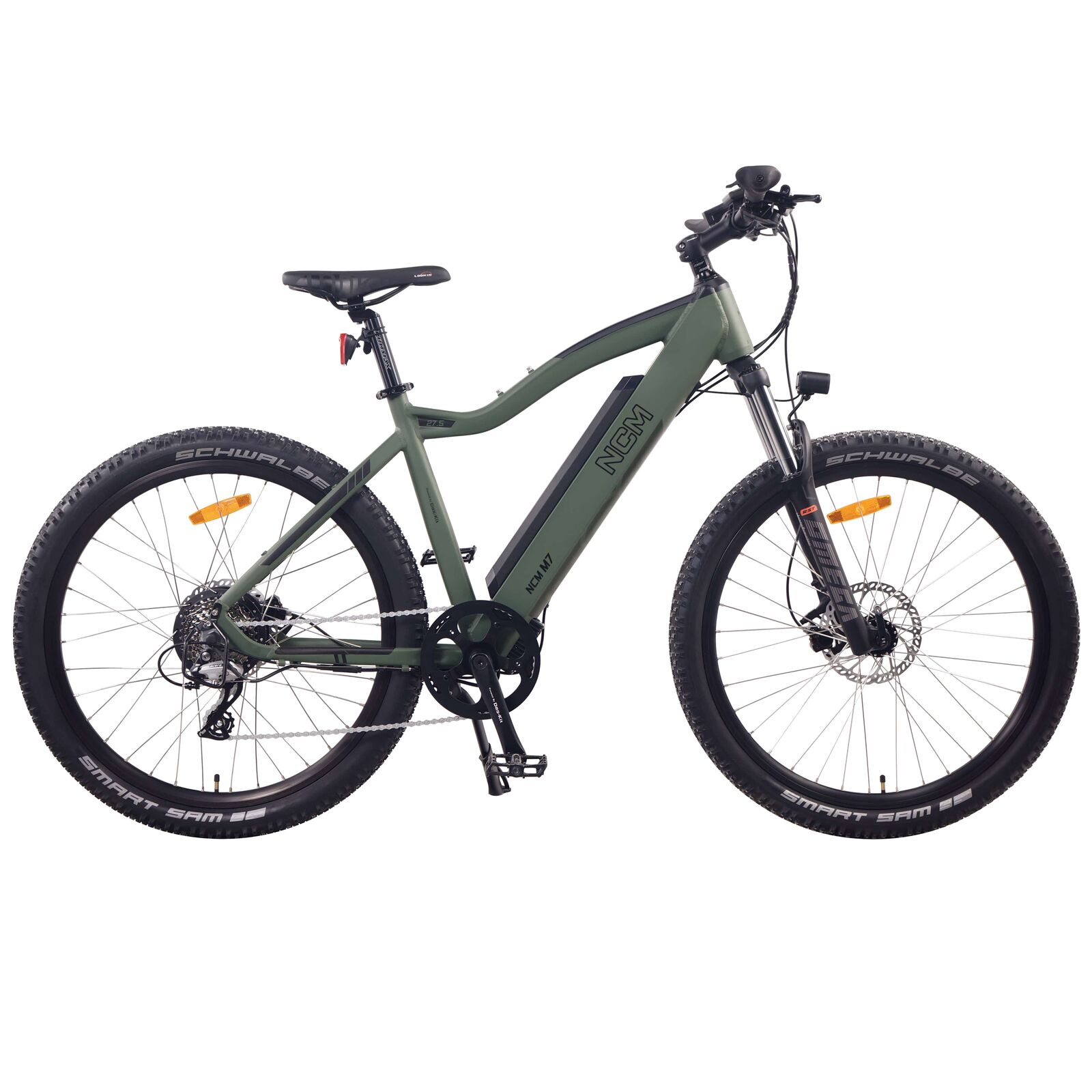

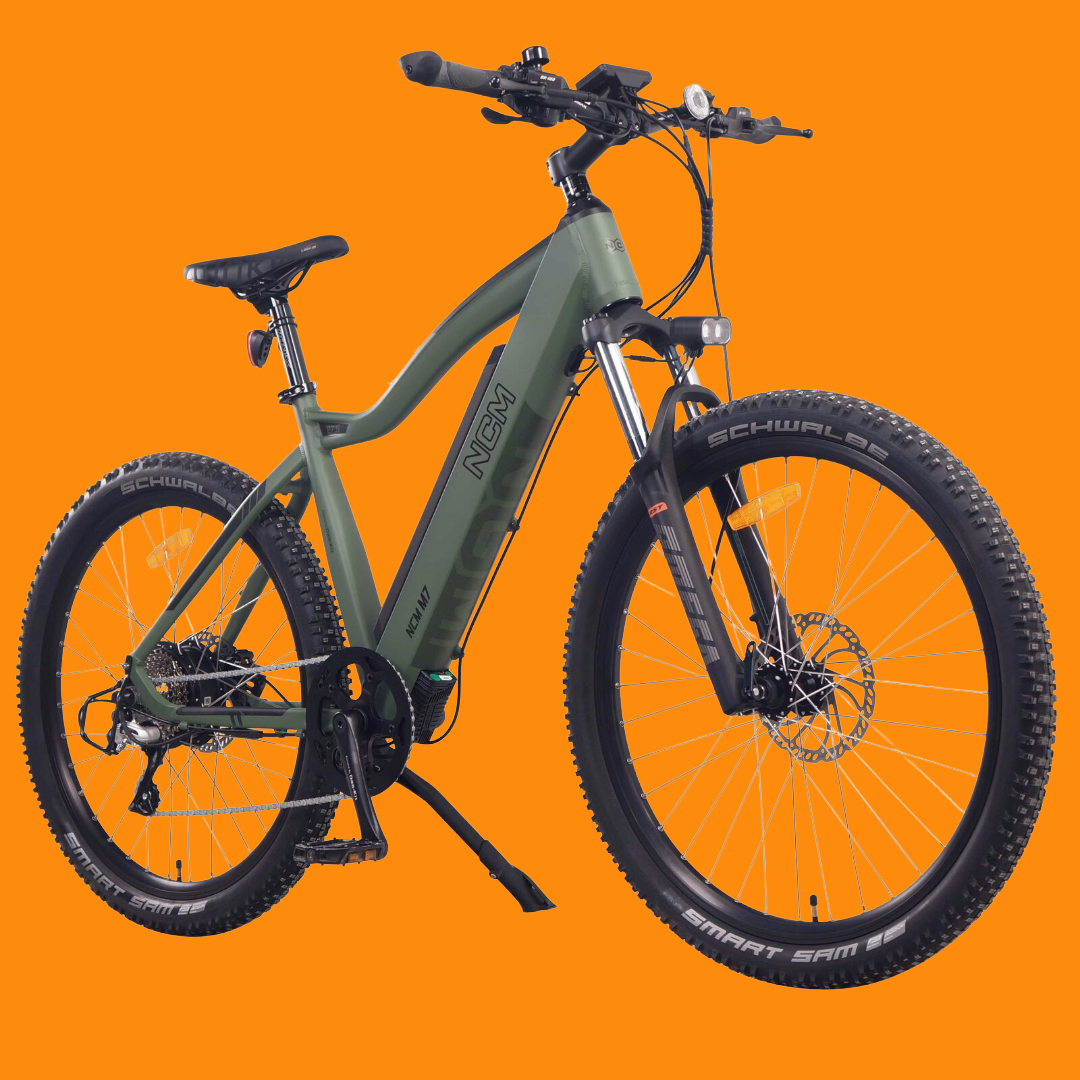

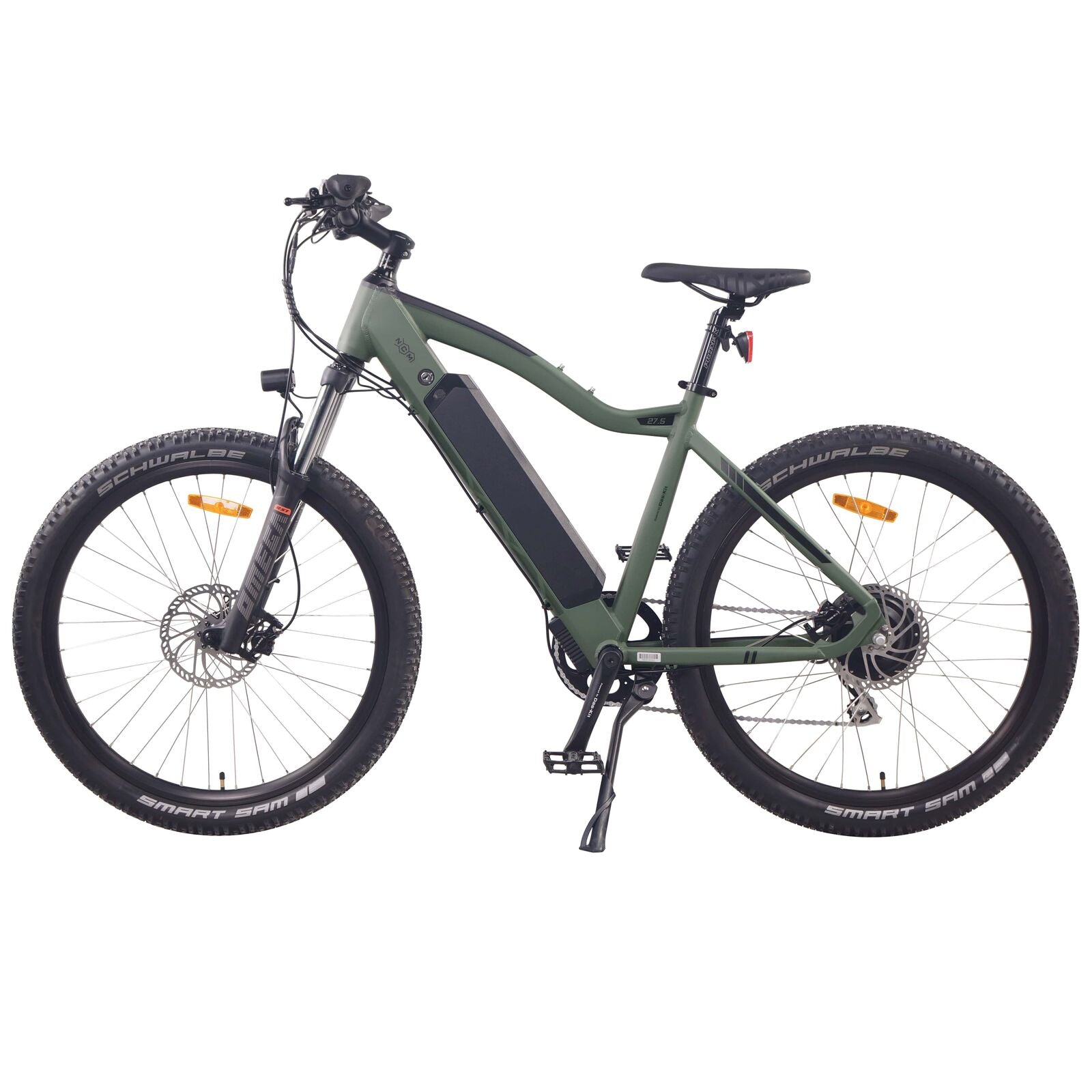

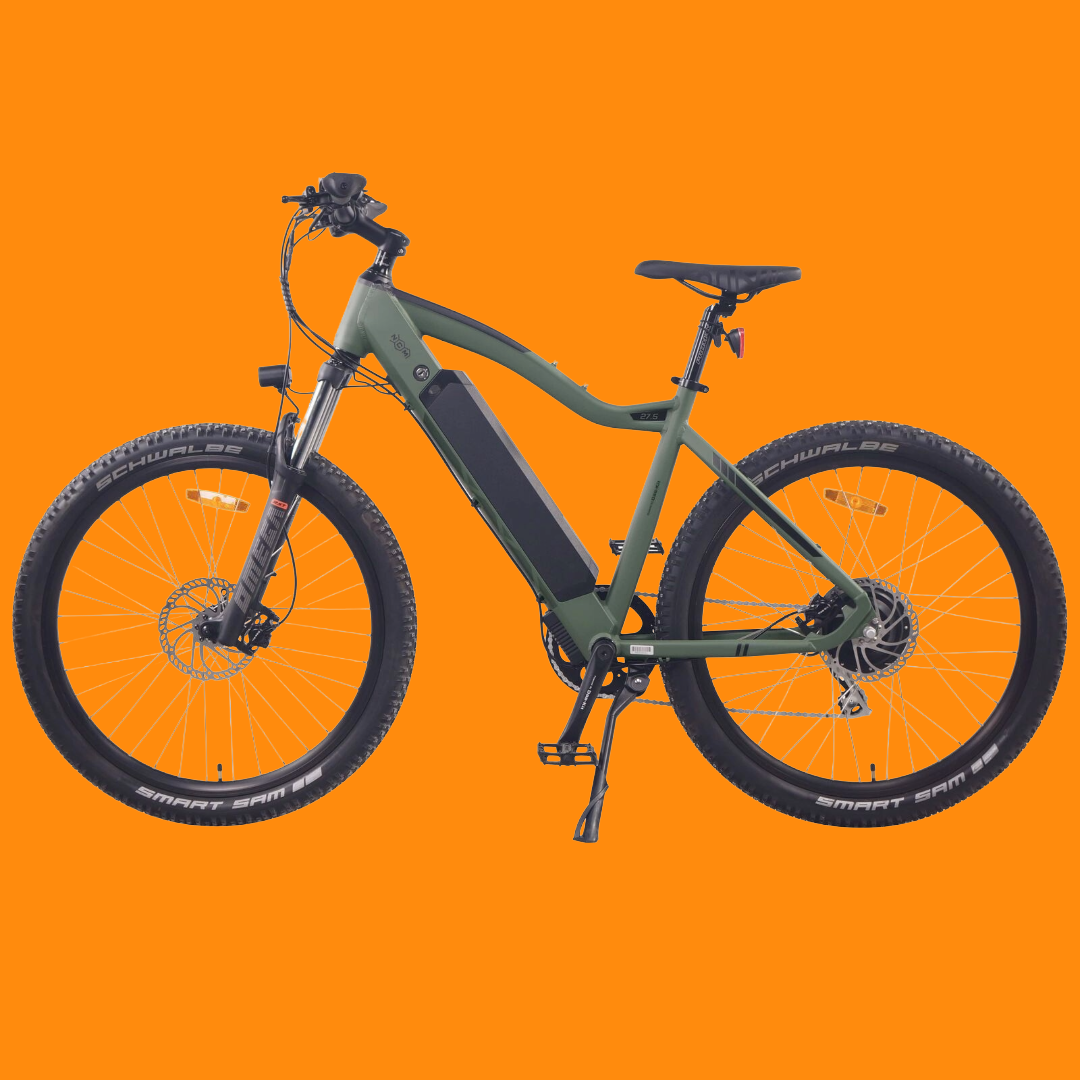

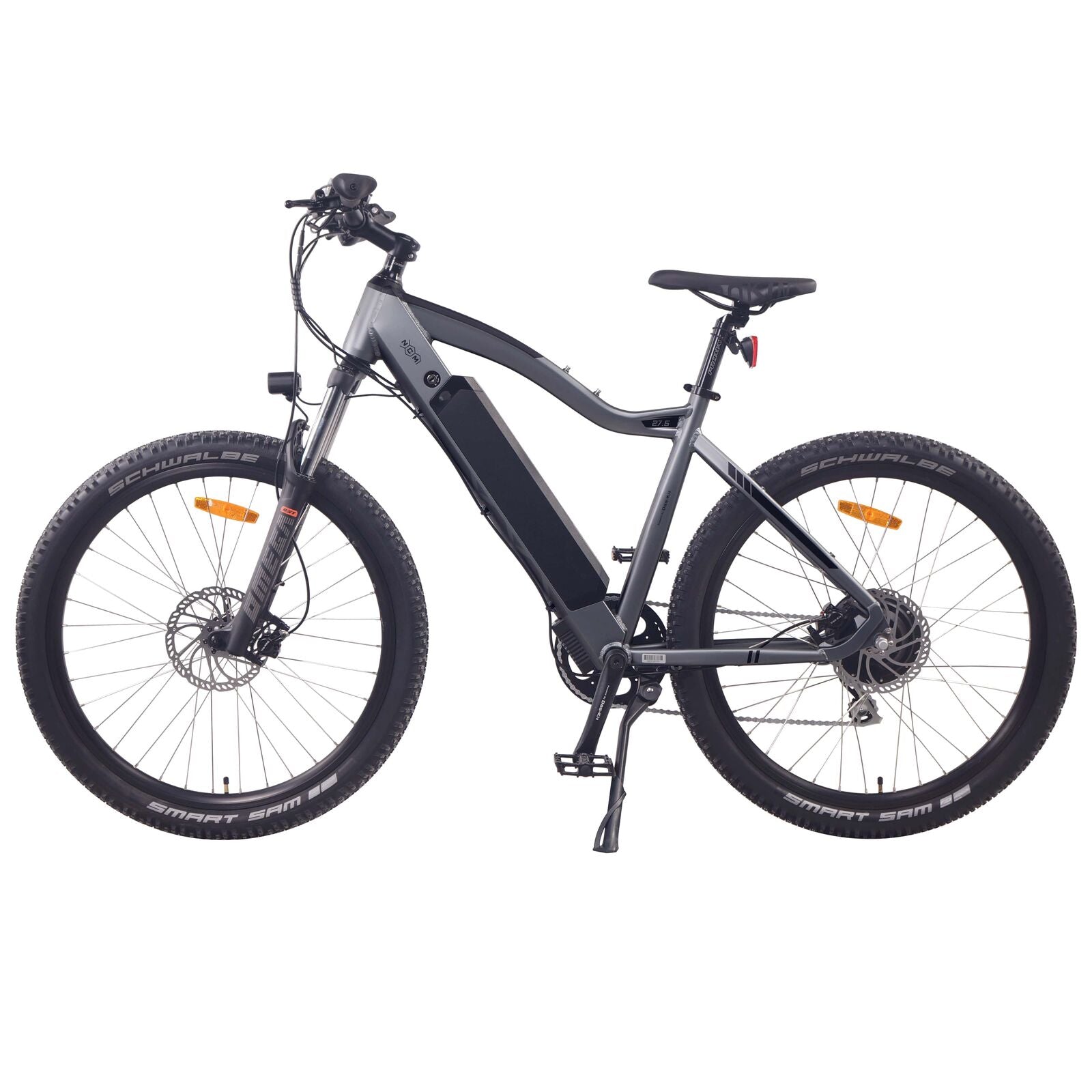

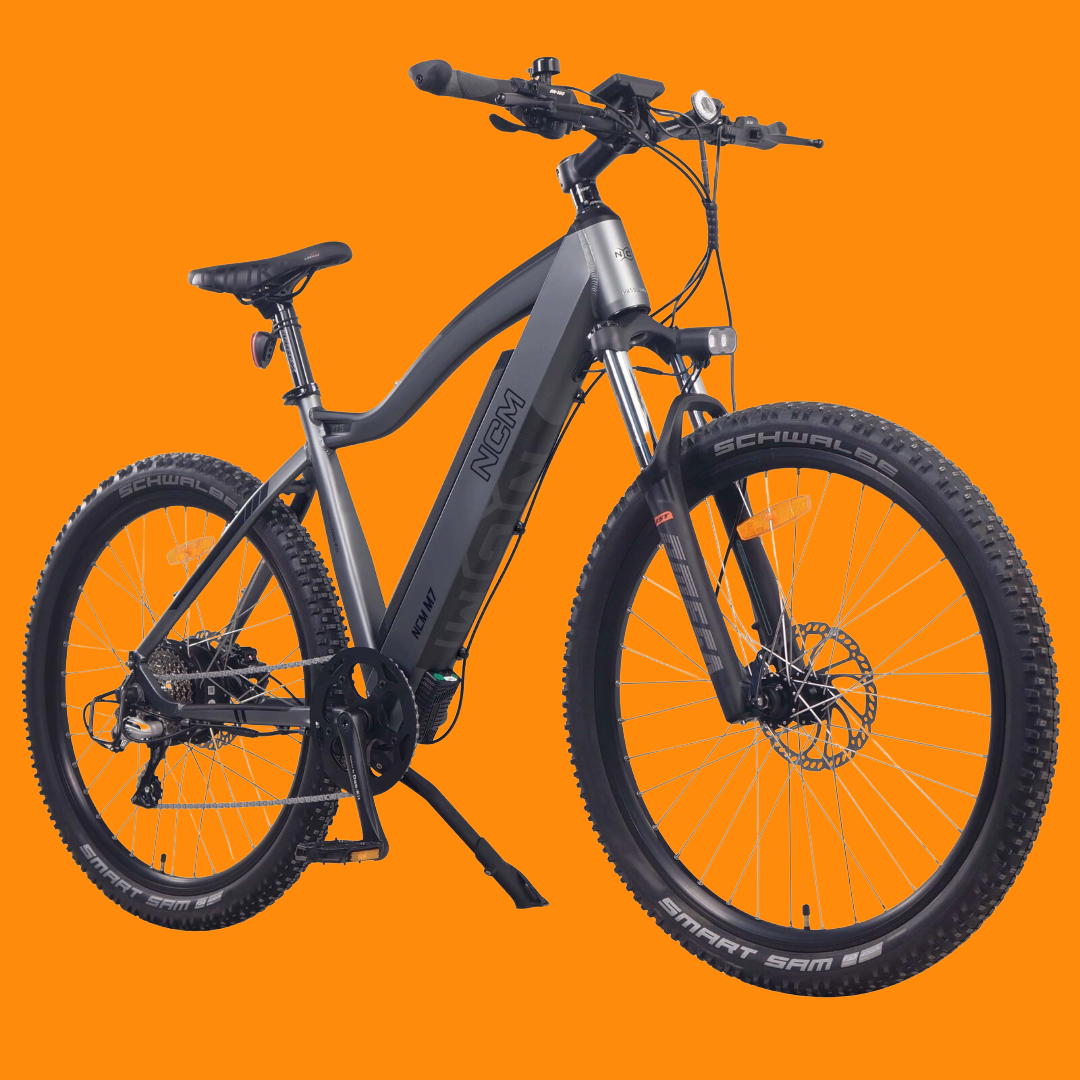

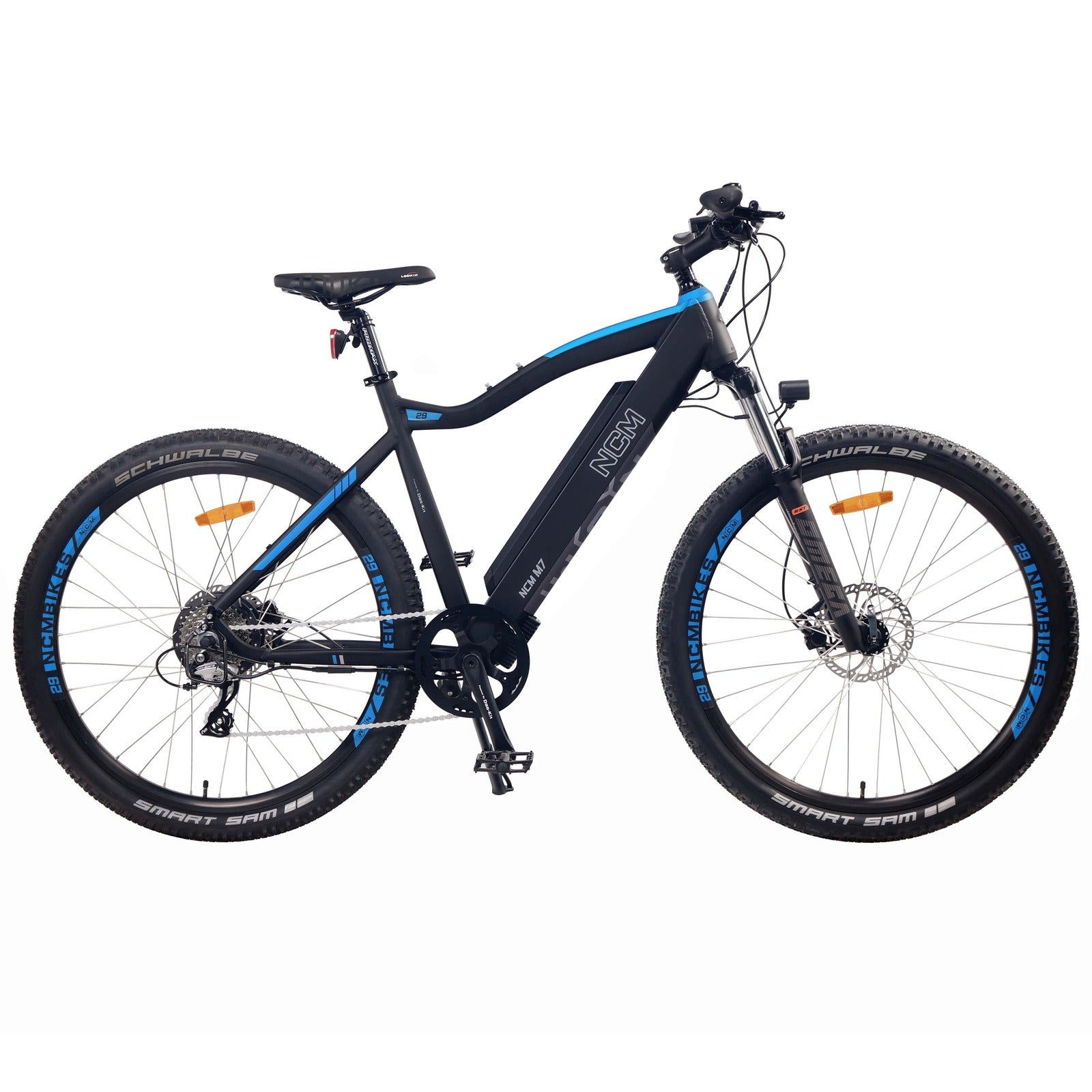

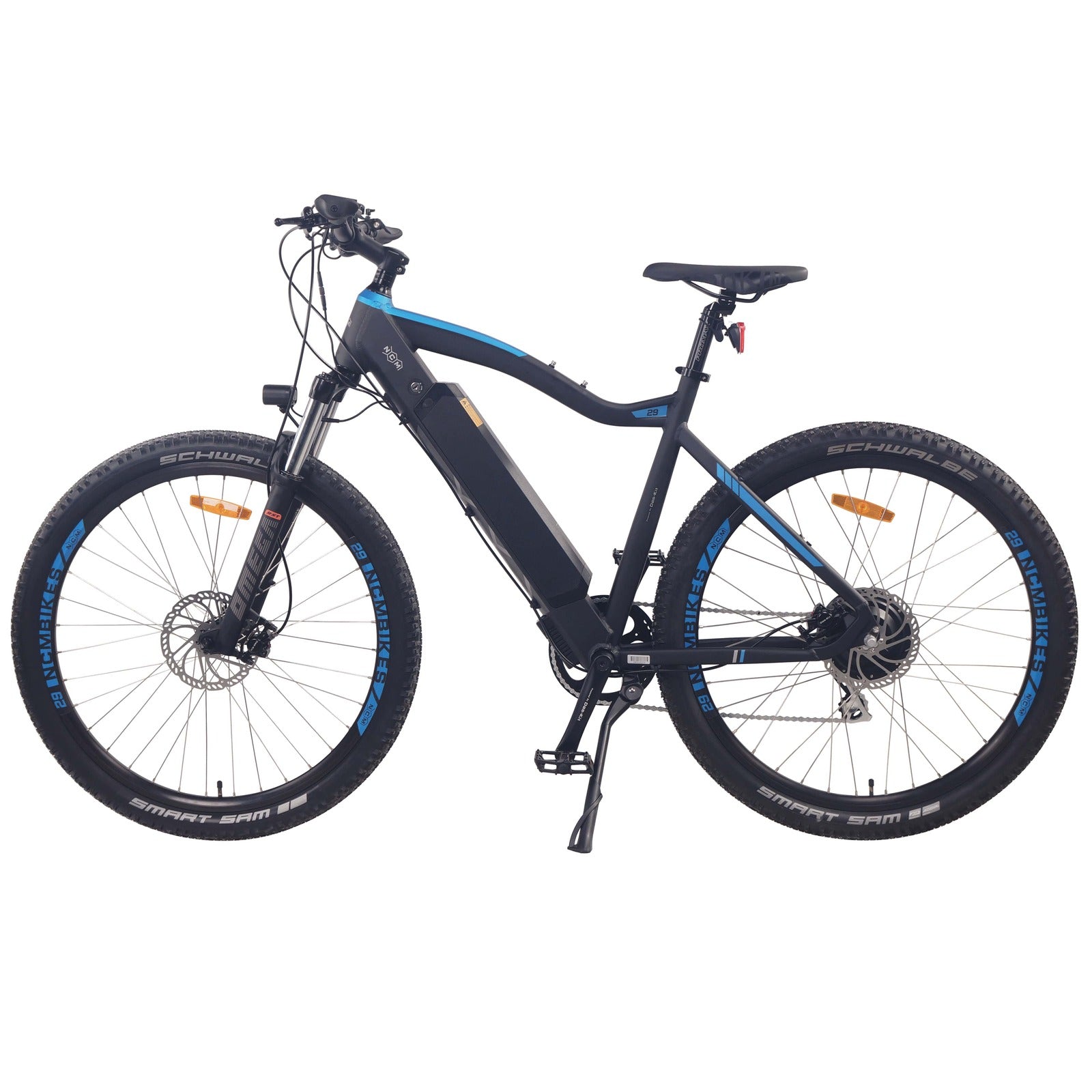

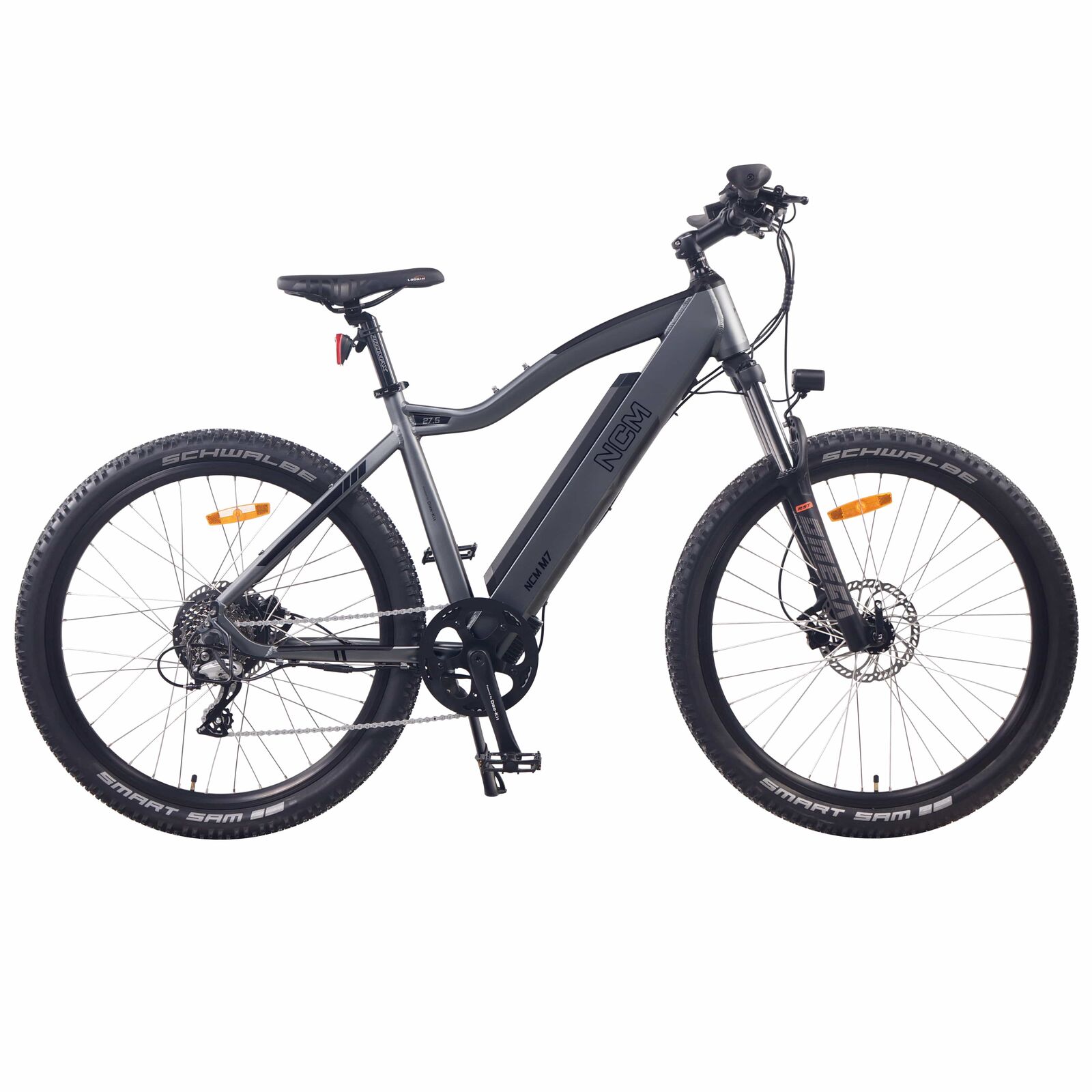

An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their e-bike can handle whatever they throw at it.
BIKE COMPONENTS
Frame: Alu. 6061, 27.5"*480MM

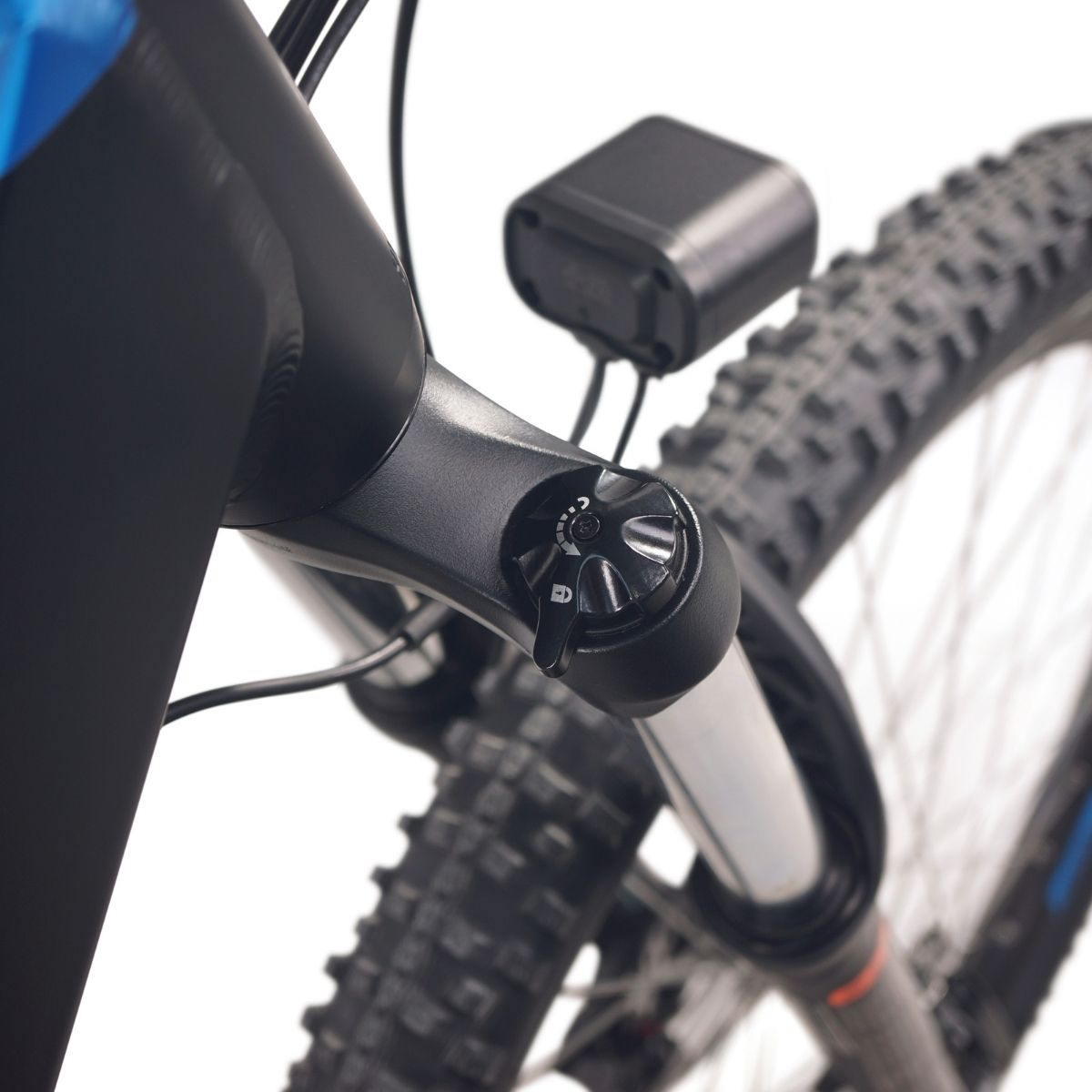

Suspension Fork: RST, OMEGA-TNL-27.5, with Hydraulic Lock System
Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor
Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: Schwalbe, Smart Sam 27.5×2.35

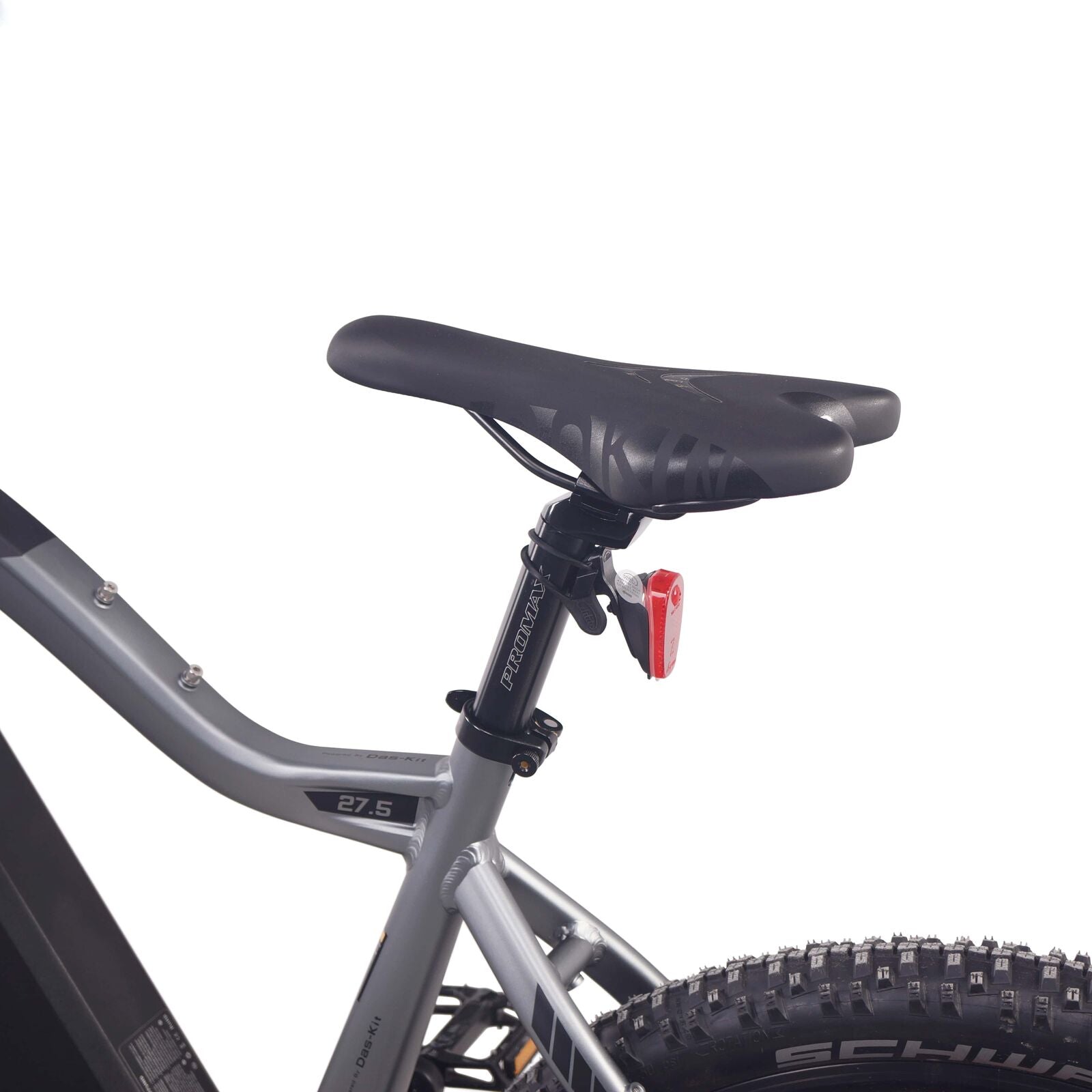

Saddle: Selle Royal, Lookin-A200UR, Black
Stem: Promax, MA-579
Crank: Das-Kit, 52T
Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

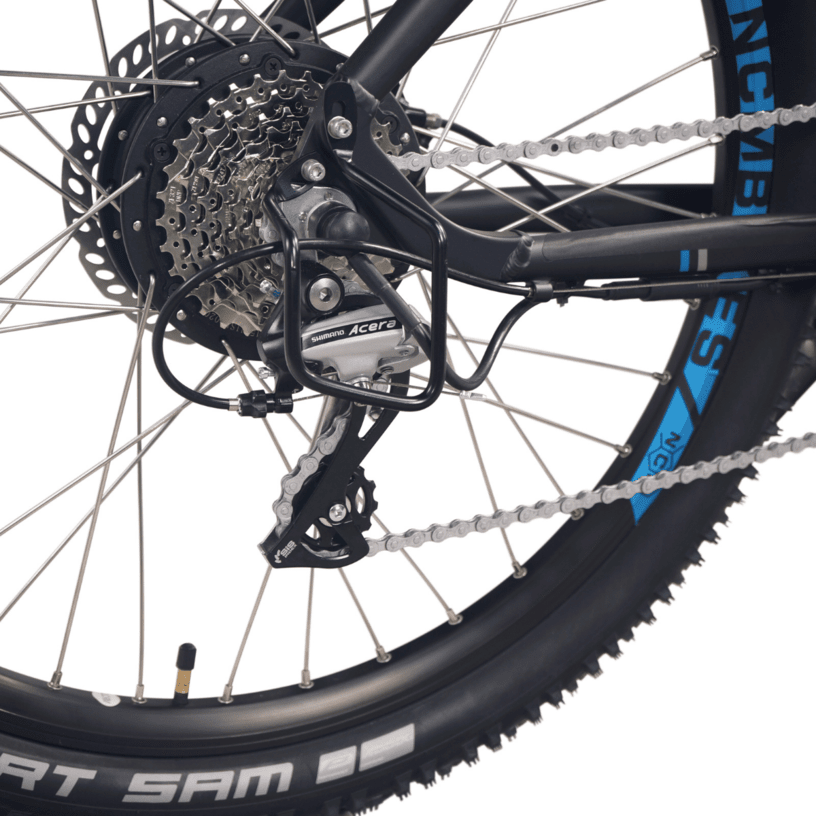

Rear Derailleur: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
ELECTRIC COMPONENTS

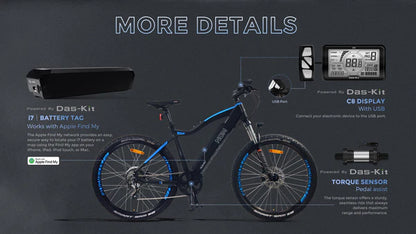

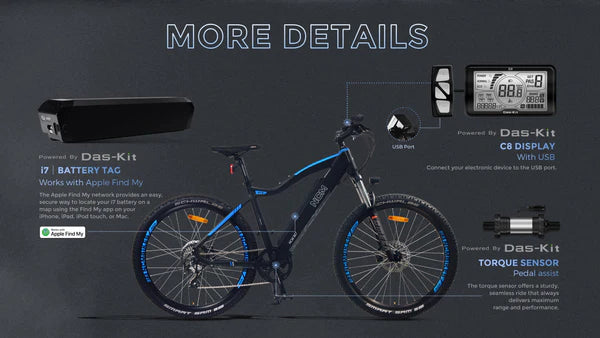

Battery: Das-Kit, i7-4819, 48V19.2AH, 912WH with TAG Technology
Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25kM/H
Controller: Das-Kit, T7+, 48V 18A
Throttle: Das-KIt, T6
Charger: Das Kit, 48V 3A

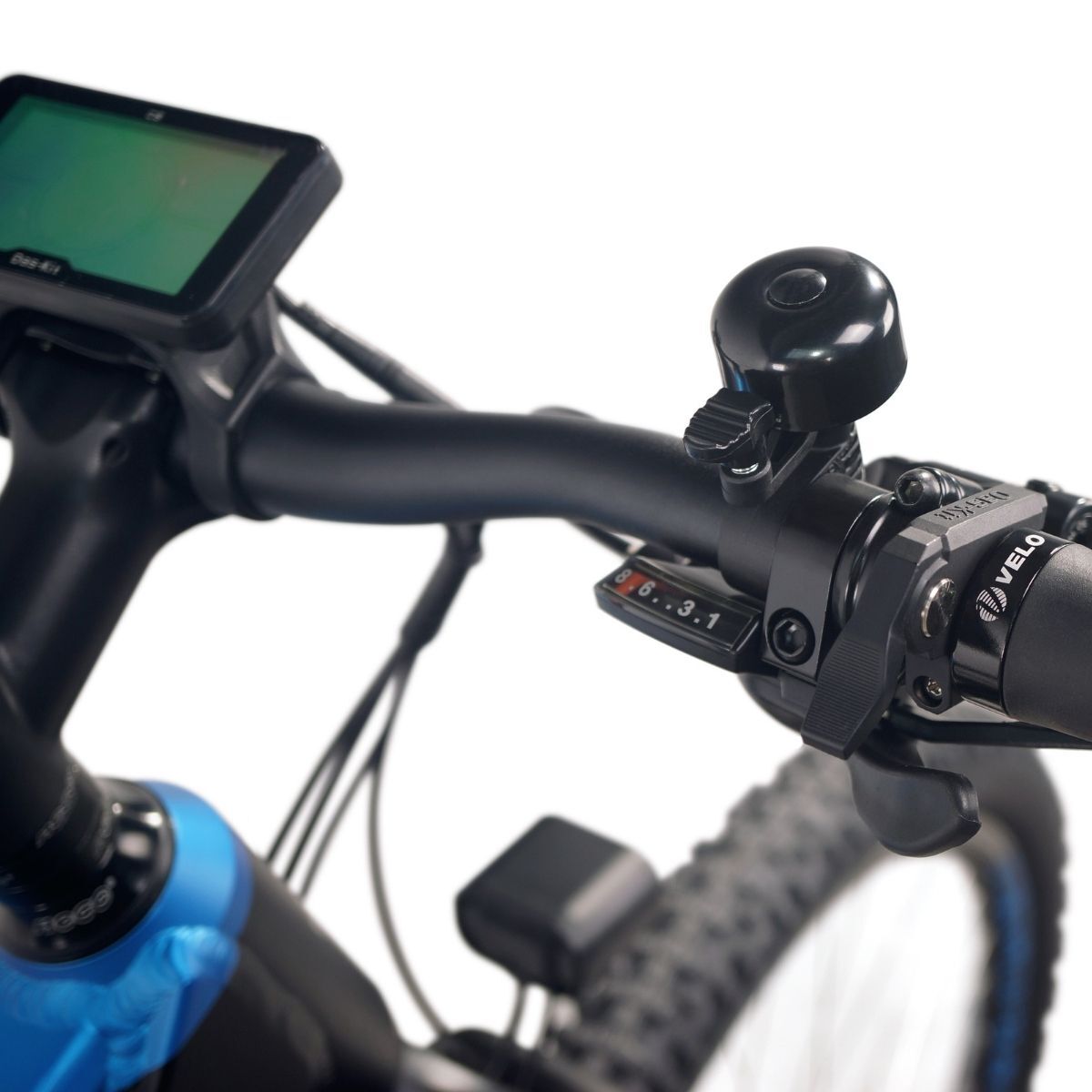

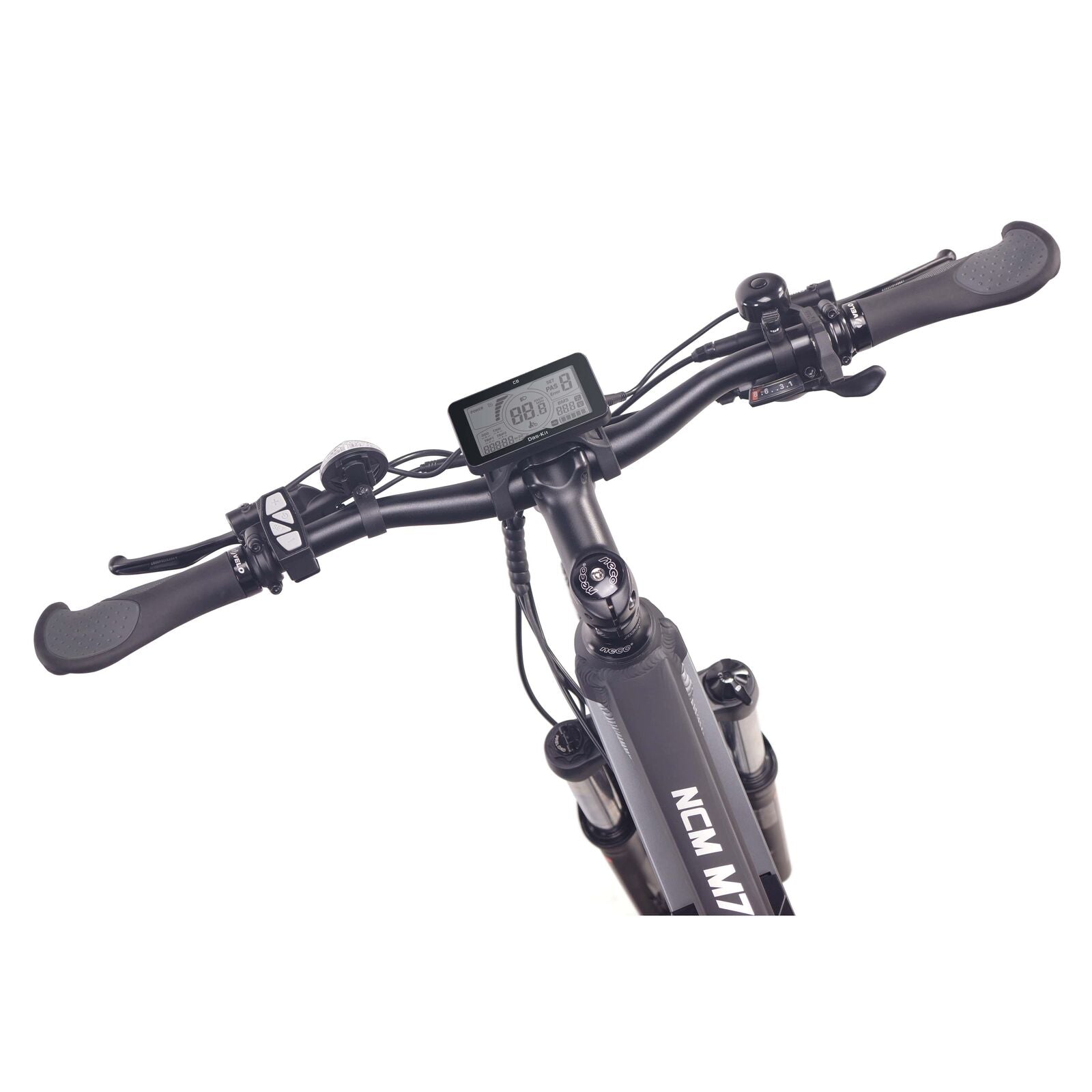

Display: Das-Kit, C8, with USB

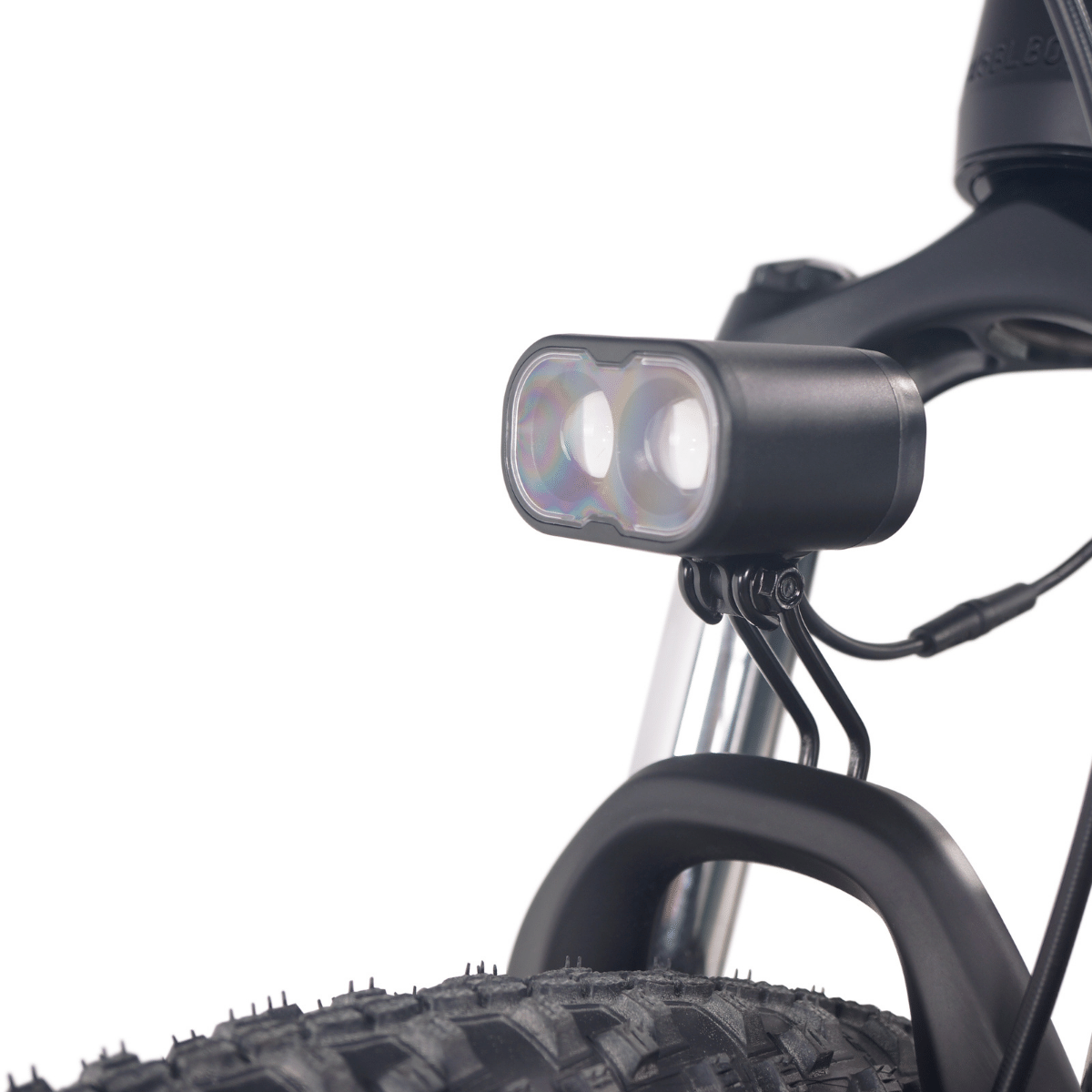

Front Light: LED, 48V, 70Lux
Rear Light: LED, 3V, 2xCR2032
WEIGHT
NCM M7 27.5":
Weight (without battery): 22.5KG
Battery Weight: 4.8KG
Max Load (rider+bike): 125KG
